| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,739 pcs
|
1739 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Diameter | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

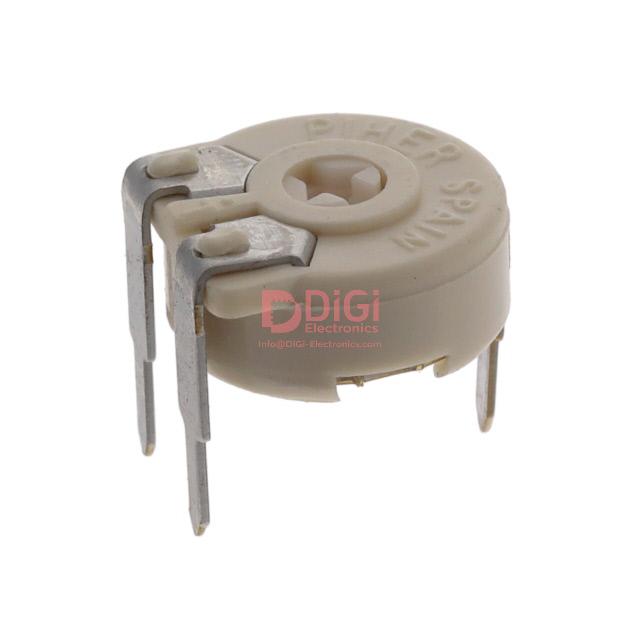

This Amphenol Piher PTC10LV10-105A2020 is a 10mm ceramic trimmer potentiometer designed for electronic circuits. It offers a resistance value of 1 MΩ with a tolerance of ±20% and a power rating of 0.33W. The potentiometer utilizes a Cermet resistive material and has a single turn adjustment type, with the adjustment located at the top.
Designed for through-hole mounting, this component features PC pins for termination. Its specifications include a temperature coefficient of ±100ppm/°C, making it suitable for applications requiring stable performance. The physical dimensions are characterized by a diameter of 10.30mm (0.406 inches).
This trimmer potentiometer is part of the PTC-10 series and is marked as active. It is suitable for various electronic assembly processes requiring precise resistance adjustments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 1 MΩ.
The power rating is 0.33W.
The tolerance is ±20%.
The temperature coefficient is ±100ppm/°C.
It has 1.0 turn.
It features top adjustment.
The resistive material is Cermet.
