| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

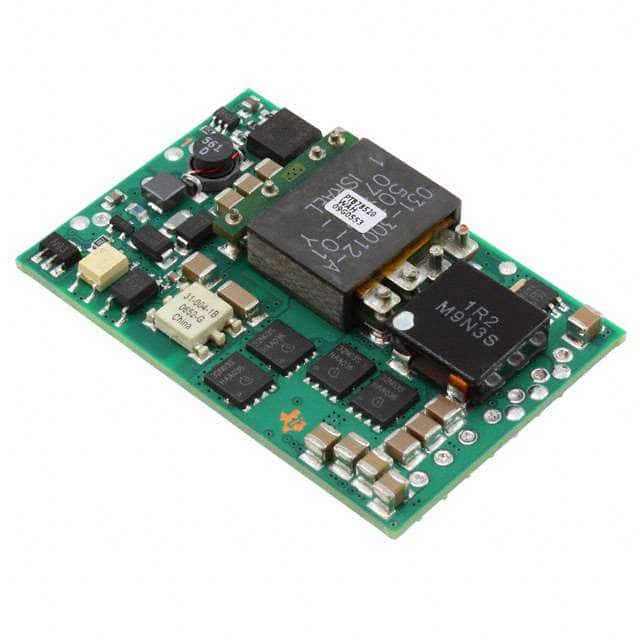

The PTB78520WAH from Texas Instruments is an isolated module DC DC converter designed for ITE (Commercial) applications. It provides a single output with a voltage of 18V and a current rating of 20A, delivering a total power of 72W with an efficiency of 90%.
This converter features through-hole mounting and comes in a 10-DIP Module package. It operates within a temperature range of -40°C to 85°C. The dimensions are 56.4mm in length, 36.8mm in width, and 12.0mm in height.
Key electrical specifications include its 18V output voltage and 20A output current, suitable for various power supply needs. The 90% efficiency rating ensures optimal power conversion. Its robust design and operating temperature range make it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 18V.
The output current is 20A.
The power rating is 72W.
The efficiency is 90%.
The operating temperature range is -40°C to 85°C.
It is mounted using the through hole method.
