| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

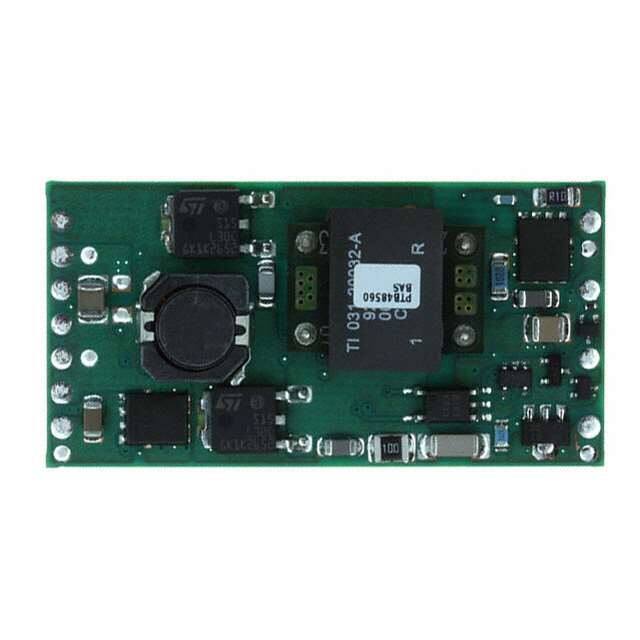

The Texas Instruments PTB48560BAS is an isolated DC DC converter module designed for commercial ITE applications. It provides a single output with a nominal input voltage of 36V and delivers up to 8A of output current with 30W of power. The converter achieves 82% typical efficiency.
The module includes protection features such as remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). It is housed in an 11-SMD surface mount package measuring 51.8mm x 26.5mm x 10.3mm and operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 12+ | $91.75 | $91.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PTB48560BAS provides up to 30W output power.
The nominal input voltage is 36V.
It comes in an 11-SMD surface mount module package.
The operating temperature range is -40°C to 85°C.
RoHS status is listed as RoHS3 Compliant but is unverified.
