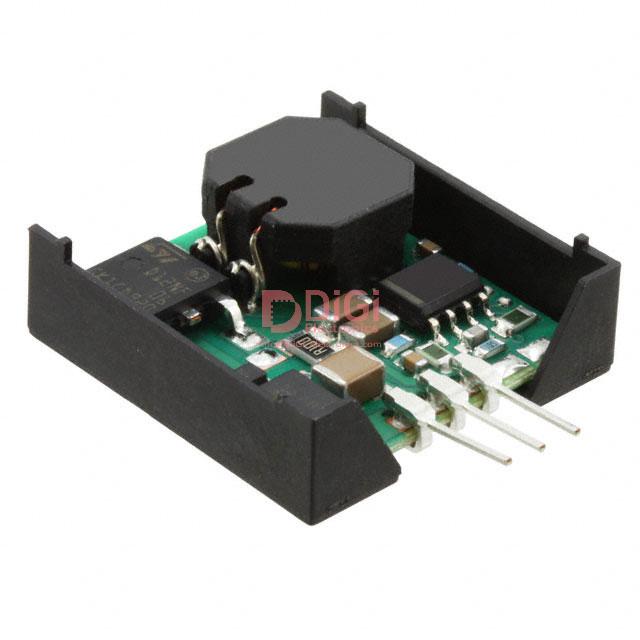

PT79SR152V The Texas Instruments PT79SR152V is a non-isolated DC DC converter with a -5.2V output and 1.5A current capability. It operates within an input voltage range of -9.2V to -30V.
Mfr Part #:

PT79SR152V

Available from 1 distributors
Mfr Name: POWER
POWER
The Texas Instruments PT79SR152V is a non-isolated DC DC converter with a -5.2V output and 1.5A current capability. It operates within an input voltage range of -9.2V to -30V.
✓ Total Stock: 1 pcs
$ Price Range: $2.06

PT79SR152V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PT79SR152V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Dimensions
Efficiency
Features
Mounting Type
Operating Temperature
Output Voltage
View Similar Products (0)

PT79SR152V Description

Short technical summary and product information.

The PT79SR152V from Texas Instruments is a non-isolated Point-of-Load (PoL) DC DC converter designed for commercial ITE applications. It provides a stable output voltage of -5.2V with a maximum output current of 1.5A.



The converter accepts a wide input voltage range, from -9.2V to -30V, making it versatile for various power system designs. It features integrated protection functions such as Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP), enhancing system reliability.



With an efficiency of 85%, the PT79SR152V operates reliably within a temperature range of -40°C to 85°C. It is housed in a 3-SIP module package and designed for through-hole mounting, with dimensions of 0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm).

PT79SR152V Quick Information

Product Type: DC DC Converter
Canonical Name: PT79SR152V DC DC Converter
Subcategory: Non-Isolated PoL Module

PT79SR152V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PT79SR152V Estimated Pricing

Qty Low High
1+ $2.06 $2.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

PT79SR152V Features

  • Provides a -5.2V output voltage.
  • Delivers a maximum output current of 1.5A.
  • Accepts input voltage from -9.2V to -30V.
  • Operates efficiently at 85%.
  • Features OTP and SCP protection.

PT79SR152V Applications

  • Used in commercial ITE power supplies.
  • Ideal for negative voltage rail generation.
  • Suitable for industrial control systems.
  • Can be used in test and measurement equipment.
  • For powering analog circuits requiring -5.2V.

PT79SR152V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the PT79SR152V?

The output voltage is -5.2V nominal.

What is the input voltage range of the PT79SR152V?

The input voltage range is -9.2V to -30V.

What is the maximum output current of the PT79SR152V?

The maximum output current is 1.5A.

What is the typical efficiency of the PT79SR152V?

The typical efficiency is 85%.

What protections does the PT79SR152V include?

It includes over-temperature protection (OTP) and short-circuit protection (SCP).

What is the package type of the PT79SR152V?

It is a through-hole 3-SIP module with dimensions 0.90" x 0.31" x 0.94" (22.9mm x 7.9mm x 23.9mm).

What is the operating temperature range of the PT79SR152V?

The operating temperature range is -40°C to 85°C.
