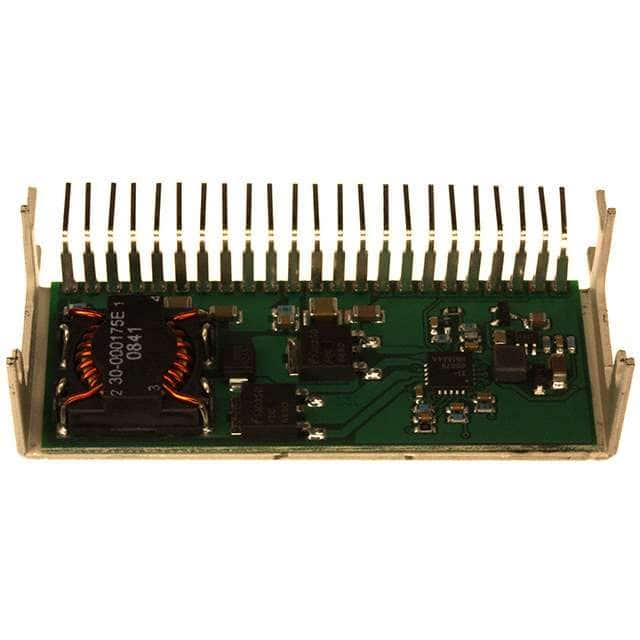

The PT6701C from Texas Instruments is a fully integrated 13A switching regulator in a compact 23-SMD module. It operates from a +5V input and delivers a programmable output voltage from 1.3V to 3.5V using a 5-bit VID code, compatible with Intel Pentium II VRM 8.3 standard.
Key electrical specifications include a typical efficiency of 90%, output short circuit protection, over-voltage protection drive, Power Good signal, remote sense, and standby on/off control. The module supports a wide operating temperature range of -40°C to 85°C.
The surface-mount package measures 65.5mm x 30.2mm x 12.7mm (2.58" x 1.19" x 0.50") and uses a 23-pin configuration. Designed for low-voltage high-current applications such as microprocessors, DSPs, and bus drivers.
| Qty | Low | High |
|---|---|---|
| 3+ | $100.00 | $100.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is programmable from 1.3V to 3.5V via a 5-bit VID interface.
The maximum output current is 13A.
The nominal input voltage is 5V, with a minimum of 4.5V.
Typical efficiency is 90% (datasheet value).
The operating temperature range is -40°C to 85°C.
It comes in a 23-SMD surface mount module package.
It is listed as RoHS3 Compliant, but this status is unverified.
