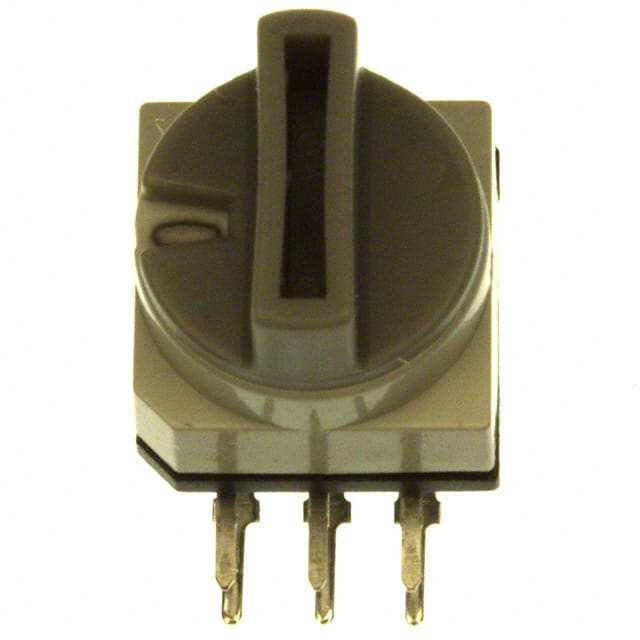

PT65526L254 The APEM Inc. PT65526L254 is an octal rotary DIP switch designed for through-hole, right-angle mounting. It offers a 150mA current rating and a 24VDC voltage rating.
Mfr Part #:

PT65526L254

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. PT65526L254 is an octal rotary DIP switch designed for through-hole, right-angle mounting. It offers a 150mA current rating and a 24VDC voltage rating.
✓ Total Stock: 215 pcs
$ Price Range: $0.75

PT65526L254 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
215 pcs
On Request
215 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PT65526L254 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

PT65526L254 Description

Short technical summary and product information.

The APEM Inc. PT65526L254 is a rotary DIP switch featuring an octal circuit configuration and 8 positions. It is designed for through-hole, right-angle mounting and has a PC pin termination style.



This switch is rated for a voltage of 24VDC and a current of 150mA, with gold-plated phosphor bronze contacts. The operating temperature range is -20°C to 70°C. It is sealed for flux protection and is washable.



The actuator type is rotary with a knob, and the actuator level is raised. The height above the board is 10.00mm (0.394"). The pitch is 2.54mm (0.100").



Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 (Unlimited).

PT65526L254 Quick Information

Product Type: DIP Switch
Canonical Name: APEM Inc. PT65526L254 Rotary DIP Switch
Subcategory: Rotary DIP Switch

PT65526L254 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PT65526L254 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

PT65526L254 Features

  • Octal rotary DIP switch with 8 positions.
  • Rated for 150mA current and 24VDC voltage.
  • Through-hole, right-angle mounting.
  • Sealed for flux protection and washable.
  • Operates from -20°C to 70°C.

PT65526L254 Applications

  • Ideal for board-level configuration settings.
  • Suitable for compact electronic designs.
  • Used in applications requiring manual input.
  • Robust for industrial environments.

PT65526L254 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating for the PT65526L254 DIP switch?

The current rating is 150mA.

What is the voltage rating for the PT65526L254 DIP switch?

The voltage rating is 24VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -20°C to 70°C.

How is the PT65526L254 DIP switch mounted?

It is designed for through-hole, right-angle mounting.

Is the PT65526L254 DIP switch washable?

Yes, it is washable.

What is the RoHS status of the PT65526L254?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the PT65526L254?

The MSL is 1 Unlimited.
