| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,701 pcs
|
1701 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

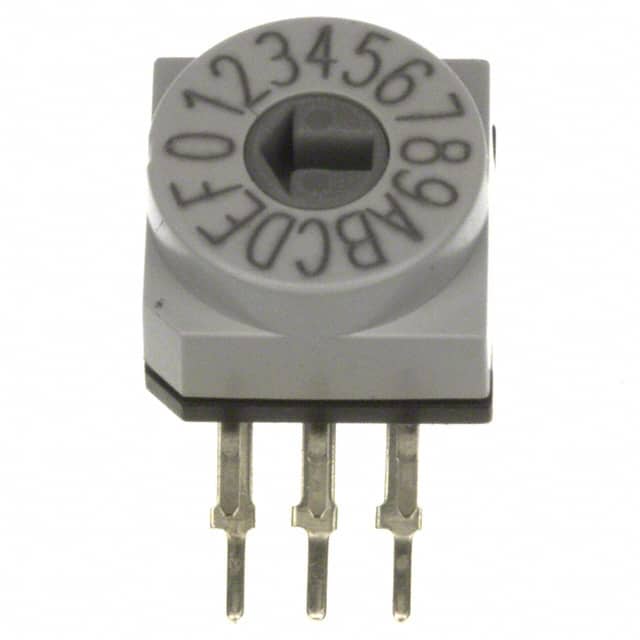

The PT65106L508 is a rotary DIP switch designed for electronic circuit applications. It features 16 positions with a pitch of 2.54mm (0.100 inches), and a height above the board of 10mm. The switch operates within a temperature range of -20°C to 70°C and is rated for 24VDC voltage and 150mA current. Its contact material is phosphor bronze with gold contact finish, ensuring reliable electrical connections. The switch is sealed for flux protection and is washable, suitable for environments requiring cleaning or flux exposure.
This switch has a through-hole mounting style with right-angle termination using PC pins. The actuator is a rotary type designed for tool operation, with flush and recessed actuator levels. It is used in various electronic devices requiring multiple position switching, such as control panels, instrumentation, and communication equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PT65106L508 has an operating voltage rating of 24VDC.
The PT65106L508 features 16 positions.
The operating temperature range is -20°C to 70°C.
The RoHS status is marked as compliant.
