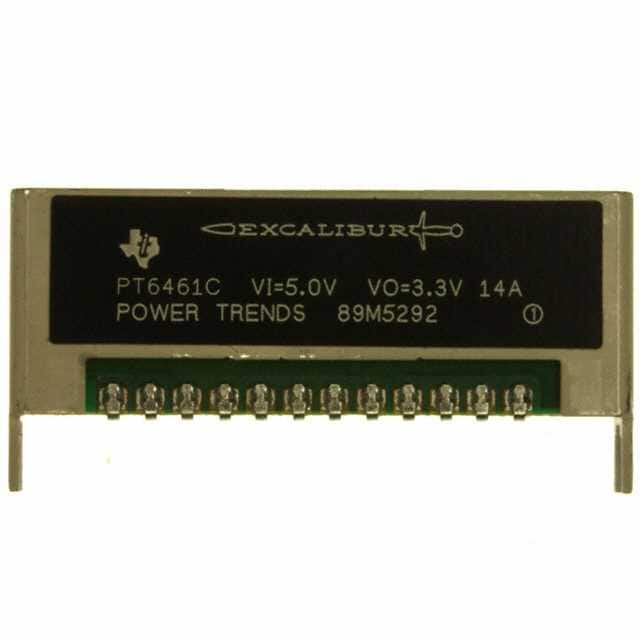

The PT6461C is a member of the PT6460 Excalibur series of integrated switching regulators from Texas Instruments. It is a non-isolated point-of-load (PoL) module that operates from a 5V input bus (4.5V to 5.5V range) and delivers a nominal 3.3V output at up to 14A. The module achieves typical efficiency of 94% and minimum efficiency of 90% over the operating temperature range of -40°C to 85°C.
Key features include output remote sense, on/off inhibit (negative logic), pre-bias start-up capability, short circuit protection, and over-current protection. The output voltage tolerance is ±2%, with line regulation of ±10 mV and load regulation of ±12 mV. The module is designed for ITE (commercial) applications and is compatible with high-performance DSPs and microprocessors.
The PT6461C is housed in a low-profile 12-SIP SMD module (package code EPK) with surface mount termination. The integral copper case construction requires no heatsink and offers a small footprint. Both through-hole and surface mount configurations are available in the series; this variant is the SMD suffix 'C'.
3.3V nominal.
4.5V to 5.5V, nominal 5V.
14A.
94%.
-40°C to 85°C.
12-SIP SMD Module (package code EPK).
It is listed as RoHS3 Compliant, but this is unverified.
