| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,153 pcs
|
4153 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel | |
| Thermal Resistance | |
| Type | |
| Voltage |

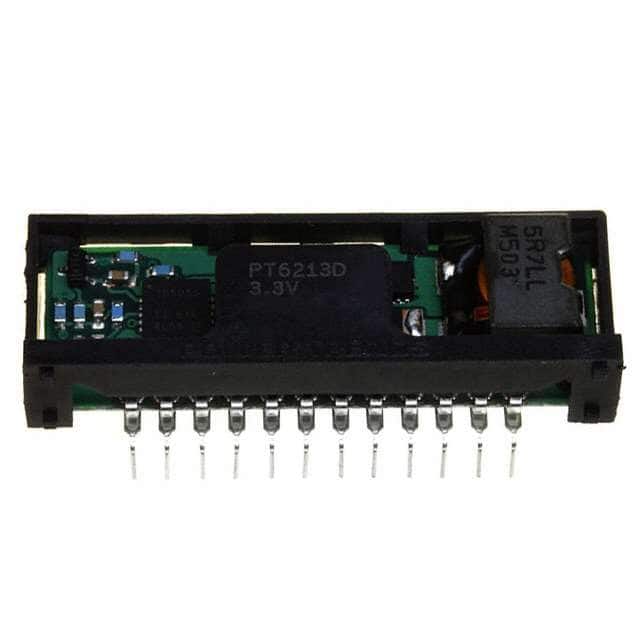

The PT6213D from Texas Instruments is a 2 Amp adjustable positive step-down integrated switching regulator. This non-isolated PoL module is designed for high efficiency, achieving up to 84% typical efficiency at a 3.3V output. It operates within an input voltage range of 9V to 26V and delivers a stable 3.3V output.
Key features include internal short circuit protection and over-temperature protection. The device has an on/off control function that can be activated by grounding the inhibit pin. It is housed in a 12-pin SIP package and is designed for through-hole, right-angle mounting.
This regulator is suitable for ITE (Commercial) applications requiring efficient on-board power conversion. The operating temperature range is -40°C to 85°C, and it has a thermal resistance of 40°C/W in free air convection.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PT6213D provides an output voltage of 3.3V.
The input voltage range is 9V to 26V.
The maximum output current is 2A.
The typical efficiency is 84%.
It comes in a 12-SIP module with through-hole, right-angle mounting.
It operates from -40°C to 85°C.
Yes, it is RoHS3 compliant.
