| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Input Voltage Range (Vo = 3.3V) | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Ripple & Noise | |
| Output Voltage - Nominal | |
| Output Voltage Tolerance (Over Vin Range, Io = 1.0 A, Ta = 0 to 60 C) | |
| Pin Count | |
| Quiescent Current | |
| Short Circuit Current | |
| Shutdown Current | |
| Storage Temperature Range | |
| Switching Frequency | |
| Tape & Reel | |
| Thermal Resistance | |
| Transient Response (50% load change with Co = 100 µF) | |
| Transient Response - Over/Undershoot | |
| Type | |
| Voltage | |
| output_current (Minimum/Maximum @ Over Vin range) |

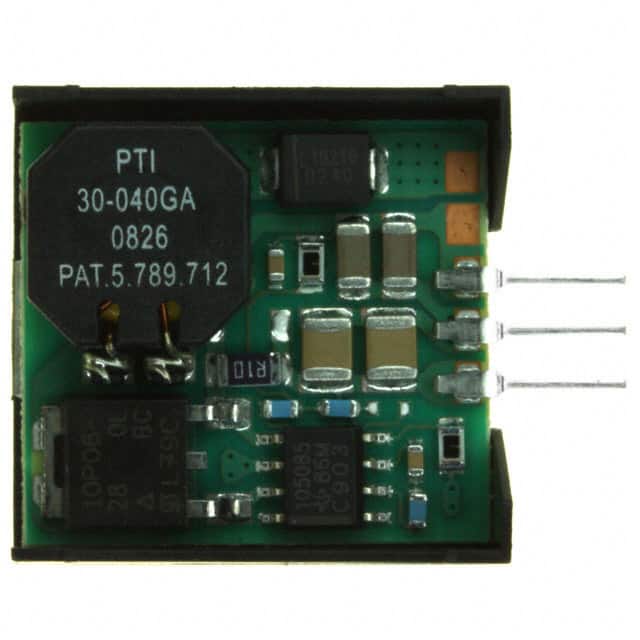

The PT6102N is a 1A, non-isolated Point-of-Load (PoL) module from the Texas Instruments PT6100 series. It provides a regulated 3.3V output from a 9V to 26V input voltage range. The module offers typical efficiency of 84% at 9V input and 0.5A load, making it suitable for battery-powered and high-efficiency applications.
Key electrical specifications include output voltage tolerance of ±1% typical (±2% maximum), line and load regulation of ±0.25% typical (±0.5% maximum), and output ripple of ±2% of Vo. The module switches at 500kHz typical (400-600kHz range) and offers transient response of 100µs typical for a 50% load change. Built-in protection features include short-circuit current limiting (3.5Apk typical) and over-temperature protection.
The PT6102N is housed in a 12-pin SIP module with through-hole mounting. It operates over a temperature range of -40°C to +85°C and is designed for commercial ITE (Information Technology Equipment) applications. The module includes an inhibit (on/off) control pin and an adjustable output voltage pin for fine-tuning.
| Qty | Low | High |
|---|---|---|
| 30+ | $10.00 | $10.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 26V for a 3.3V output with 0.1A to 1.0A load.
The output voltage is 3.3V nominal, and the output current range is 0.1A to 1.0A over the input voltage range.
The operating temperature range is -40°C to +85°C.
The PT6102N is available in a 12-pin SIP (Single In-line Package) through-hole module.
The part is listed as RoHS3 compliant, but this information is unverified and should be confirmed with official documentation.
Typical efficiency is 84% at 9V input, 0.5A load, and 3.3V output.
Yes, it has internal short-circuit protection; the typical short-circuit current is 3.5Apk.
