| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output 1 |

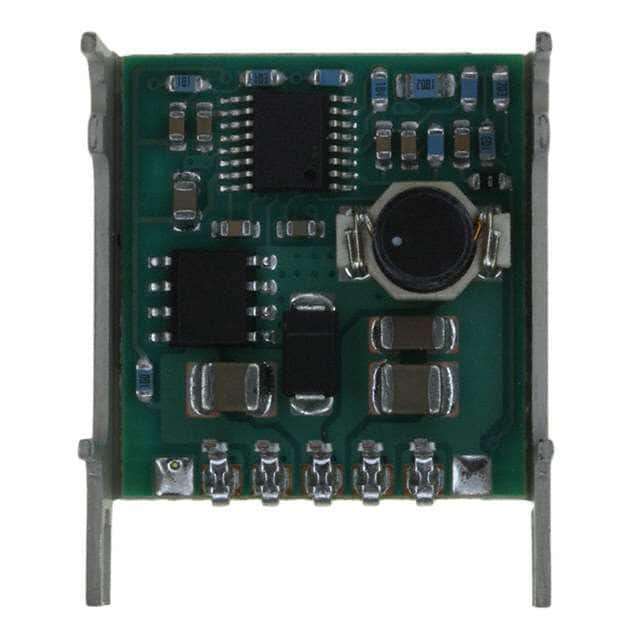

The PT5504A is a Non-Isolated Point-of-Load (PoL) DC-DC converter module from Texas Instruments. It delivers a regulated 1.8V output with a maximum output current of 3A. The module operates from a minimum input voltage of 3.1V and achieves a typical efficiency of 83%.
Designed for commercial ITE (Information Technology Equipment) applications, the PT5504A operates over a temperature range of -40°C to 85°C. Its compact 5-SIP (Single In-line Package) module with through-hole, right-angle mounting simplifies board integration and saves space.
The module's high efficiency and wide operating temperature range make it suitable for powering low-voltage digital circuits in industrial and commercial systems.
The PT5504A provides a nominal output voltage of 1.8V.
The maximum output current is 3A.
The typical efficiency is 83%.
The operating temperature range is -40°C to 85°C.
It comes in a 5-SIP Module with through-hole, right-angle mounting.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
