| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Flammability | |
| Flammability Rating | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Over temperature shutdown | |
| Storage Temperature Range | |
| Suffix Code (Case/Pin Order) | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output | |
| Weight | |
| Width |

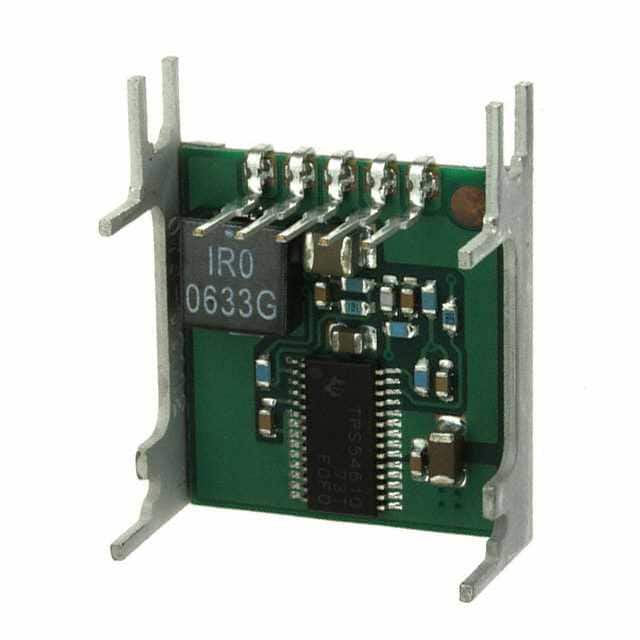

The Texas Instruments PT5407A is a Non-Isolated Point-of-Load (PoL) module from the PT5400 series of high-performance integrated switching regulators. It provides a regulated 1V output with a maximum output current of 5.5A. The module accepts a wide input voltage range from 3.1V to 5.5V, making it suitable for 3.3V and 5V bus systems.
This module features a typical efficiency of 80% and includes under-voltage lockout (UVLO) protection. It is designed for commercial ITE (Information Technology Equipment) applications. The PT5407A is packaged in a 5-SIP (Single In-line Package) module with a through-hole, right-angle mounting configuration, measuring 28.2mm x 22.9mm x 7.9mm and weighing 6.5g.
The PT5407A provides a nominal output voltage of 1V.
The maximum output current is 5.5A.
The input voltage range is 3.1V to 5.5V.
The operating temperature range is -40°C to 85°C.
The PT5407A is available in a 5-SIP Module package with a through-hole, right-angle mounting type.
The typical efficiency is 80%.
The PT5407A includes under-voltage lockout (UVLO) protection.
