Mfr Part #:

PT50-780

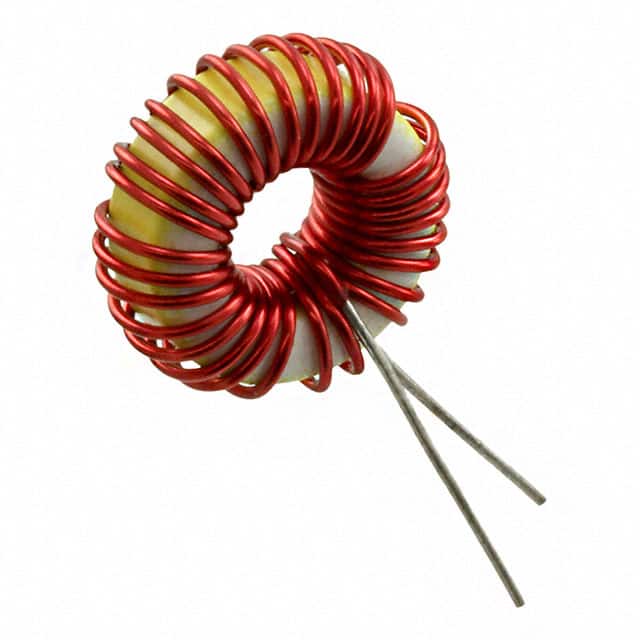

The API Delevan Inc. PT50-780 is a toroidal fixed inductor offering 50 µH of inductance and a current rating of 3.8A. It features a shielded construction and through-hole mounting.

✓ Total Stock: 1 pcs

$ Price Range: $0.52

PT50-780 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PT50-780 Description

Short technical summary and product information.

The API Delevan Inc. PT50-780 is a shielded, toroidal fixed inductor designed for through-hole mounting. It provides an inductance value of 50 µH with a tolerance of ±15% and a maximum DC resistance of 50mOhm.

This inductor is rated for a current of 3.8A and is constructed with an iron powder core. Its physical dimensions are 0.780 inches in diameter and 0.360 inches in width. The component is specified as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.

Ideal for applications requiring stable inductance and current handling, the PT50-780's toroidal and shielded design helps minimize electromagnetic interference. Its through-hole mounting ensures secure placement on PCBs.

PT50-780 Quick Information

Product Type: Fixed Inductor

Canonical Name: API Delevan Inc. PT50-780 Toroidal Fixed Inductor

Subcategory: Toroidal

PT50-780 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PT50-780 Estimated Pricing

Qty	Low	High
1+	$0.52	$0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PT50-780 Features

50 µH inductance with ±15% tolerance.
Rated for 3.8A current.
Low 50mOhm maximum DCR.
Shielded toroidal construction.
Through-hole mounting.

PT50-780 Applications

Suitable for power supply filtering.
Used in noise suppression circuits.
Applicable for general purpose inductors.
Ideal for signal filtering.

PT50-780 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the inductance of the PT50-780?

The inductance of the PT50-780 is 50 µH.

What is the current rating for the PT50-780?

The PT50-780 has a current rating of 3.8 A.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance (DCR) for the PT50-780 is 50mOhm.

What type of inductor is the PT50-780?

The PT50-780 is a toroidal fixed inductor.

How is the PT50-780 mounted?

The PT50-780 is designed for through-hole mounting.

PT50-780 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

PT50-780-VM

API Delevan Inc.

The API Delevan Inc. PT50-780-VM is a shielded toroidal fixed inductor with 50 µH inductance and a current rating of 3.8 A. It features through-hole mounting.

View Part

PT50-780HM
