| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Isolation Voltage | |
| Lead Style | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Set Point Voltage Tolerance | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

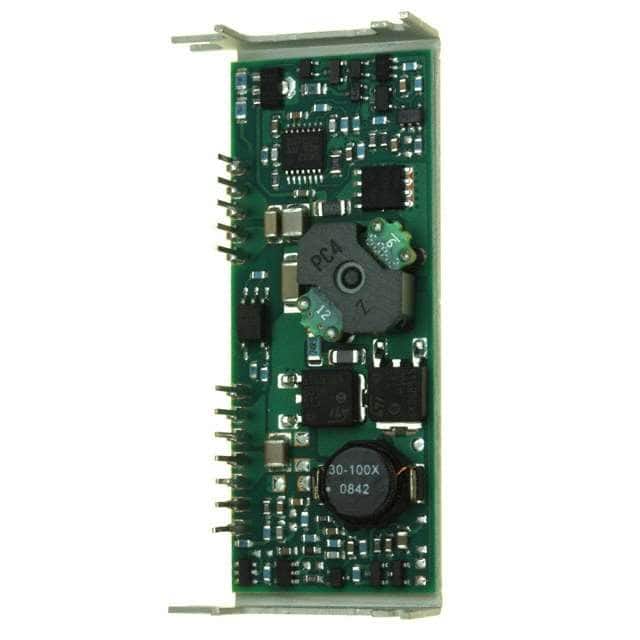

The PT4506A is a member of the PT4500 series of isolated DC/DC converters from Texas Instruments. It delivers a regulated 1.5V output at 5A for a total power of 7.5W.
Input voltage range is 18V to 40V. The module offers 1500VDC input-to-output isolation. Line regulation is typically ±0.2%, load regulation is 13mV typical for outputs ≤3.3V. Set point voltage tolerance is ±1% typical.
Features include remote on/off control, differential remote sense, short circuit protection, and over temperature shutdown. The module is housed in a 12-SIP package with through-hole right-angle mounting. MTBF is 4×10^6 hours.
Suitable for ITE (commercial) applications requiring isolated power conversion in telecom, industrial, and distributed power systems.
| Qty | Low | High |
|---|---|---|
| 6+ | $51.60 | $51.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18V to 40V.
-40°C to 85°C.
12-SIP Module.
RoHS3 compliant (unverified).
1.5V at 5A.
1500VDC.
UVLO, remote on/off, remote sense, short circuit protection, over temperature shutdown.
