Mfr Part #:

PT2S7LB2

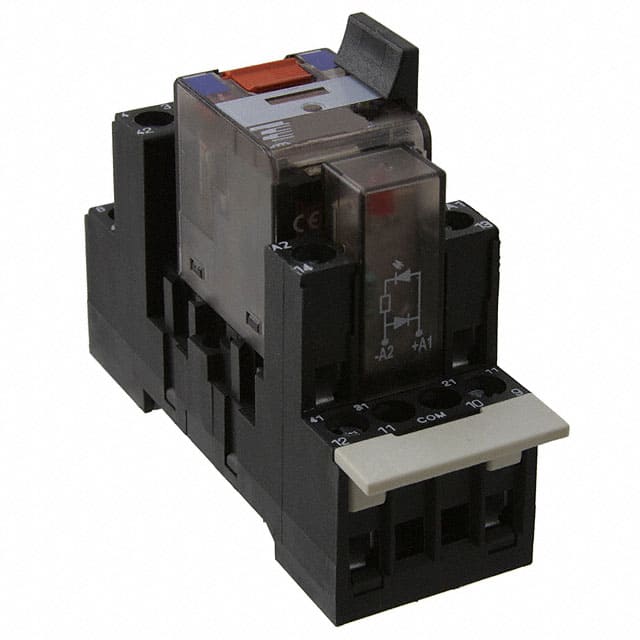

Name: PT2S7LB2
Brand: TE Connectivity
SKU: PT2S7LB2

Mfr Name: TE Connectivity

Description:

RELAY GEN PURPOSE DPDT 12A 12V

Stock on Request

PT2S7LB2 Description

Short technical summary and product information.

RELAY GEN PURPOSE DPDT 12A 12V

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

PT2L7LB2

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 12A 12V

Category	Power Relays, Over 2 Amps
Manufacturer Name	TE Connectivity
Coil Current	62.5 mA
Coil Type	Non Latching
Coil Voltage	12VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button
Mounting Type	DIN Rail
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature	-40°C ~ 70°C
Relay Type	General Purpose
Release Time	18 ms
Switching Voltage	400VAC - Max
Termination Style	Screw Terminal
