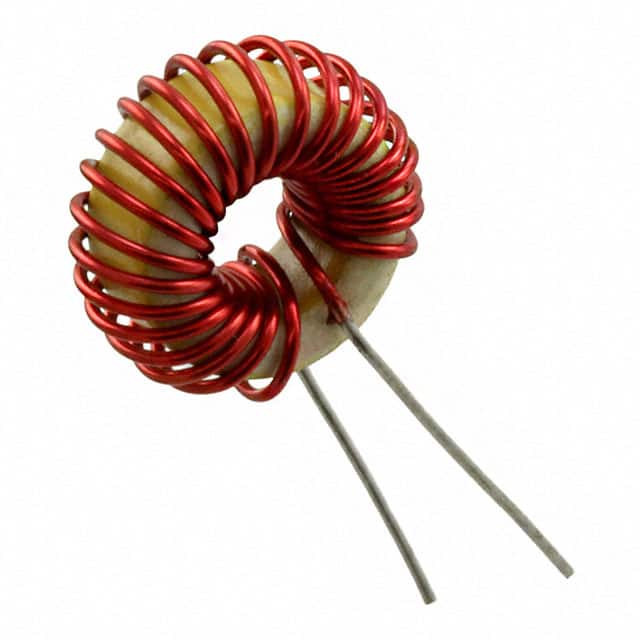

PT25-680 The API Delevan PT25-680 is a shielded toroidal fixed inductor with a 25µH inductance rating and a 4.4A current capacity. It features through-hole mounting and a low DC resistance of 35mOhm Max.
Mfr Part #:

PT25-680

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan PT25-680 is a shielded toroidal fixed inductor with a 25µH inductance rating and a 4.4A current capacity. It features through-hole mounting and a low DC resistance of 35mOhm Max.
✓ Total Stock: 1 pcs
$ Price Range: $0.52

PT25-680 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PT25-680 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Inductance
Material
Mounting Type
Shielding
Tolerance
Type
View Similar Products (0)

PT25-680 Description

Short technical summary and product information.

The API Delevan PT25-680 is a fixed inductor belonging to the PT series. This toroidal inductor is shielded and designed for through-hole mounting. It offers a nominal inductance of 25µH with a tolerance of ±15% and can handle a current rating of 4.4A.



Key electrical characteristics include a maximum DC resistance of 35mOhm and an inductance test frequency of 1kHz. The inductor is constructed with an iron powder core. Its physical dimensions are approximately 0.680" in diameter and 0.370" wide.



This component is suitable for applications requiring stable inductance and current handling capabilities. The through-hole mounting ensures a secure connection on printed circuit boards. The shielded design helps to minimize electromagnetic interference.

PT25-680 Quick Information

Product Type: Fixed Inductor
Series: PT
Canonical Name: API Delevan PT25-680 Shielded Toroidal Inductor
Subcategory: Fixed Inductor

PT25-680 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PT25-680 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PT25-680 Features

  • Shielded toroidal fixed inductor.
  • 25µH inductance at 1kHz.
  • Rated for 4.4A current.
  • Low 35mOhm maximum DC resistance.
  • Through-hole mounting design.

PT25-680 Applications

  • Suitable for power supply filtering.
  • Used in RF circuits.
  • Ideal for noise suppression.
  • Component in DC-DC converters.

PT25-680 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PT25-680?

The inductance of the PT25-680 is 25µH.

What is the current rating for the PT25-680 inductor?

The PT25-680 has a current rating of 4.4A.

What is the maximum DC resistance of the PT25-680?

The maximum DC resistance for the PT25-680 is 35mOhm.

What type of inductor is the PT25-680?

The PT25-680 is a shielded toroidal inductor.

How is the PT25-680 mounted?

The PT25-680 is designed for through-hole mounting.
