| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,626 pcs
|
48626 pcs | On Request | 1 | On Request | On Request | 26+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination |

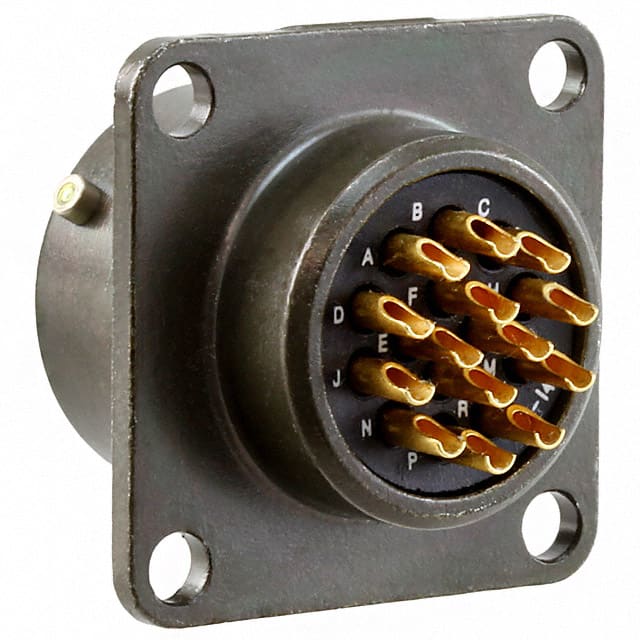

This Amphenol Industrial PT02E-12-14S is a circular connector receptacle designed for robust applications. It features 14 positions with female sockets and a solder cup termination for secure connections.
The connector is constructed with an aluminum shell, finished in olive drab chromate over cadmium, providing durability and environmental resistance. It is rated for an operating temperature range of -55°C to 125°C and offers environment sealing for protection against contaminants.
Mounting is achieved via a flange with a panel mount type, and a bayonet lock fastening ensures a secure connection. The connector is unshielded and has a shell size of 12-14. Its orientation is normal (N).
This component is compliant with RoHS3 standards and has an MSL of 1. It is suitable for applications requiring reliable and sealed connections in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PT02E-12-14S connector has 14 positions.
The PT02E-12-14S is a receptacle, female sockets connector.
The mounting type for this connector is panel mount.
The termination style is solder cup.
The operating temperature range is -55°C to 125°C.
The shell material is aluminum with an olive drab chromate over cadmium finish.
No, the connector is unshielded.
