| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

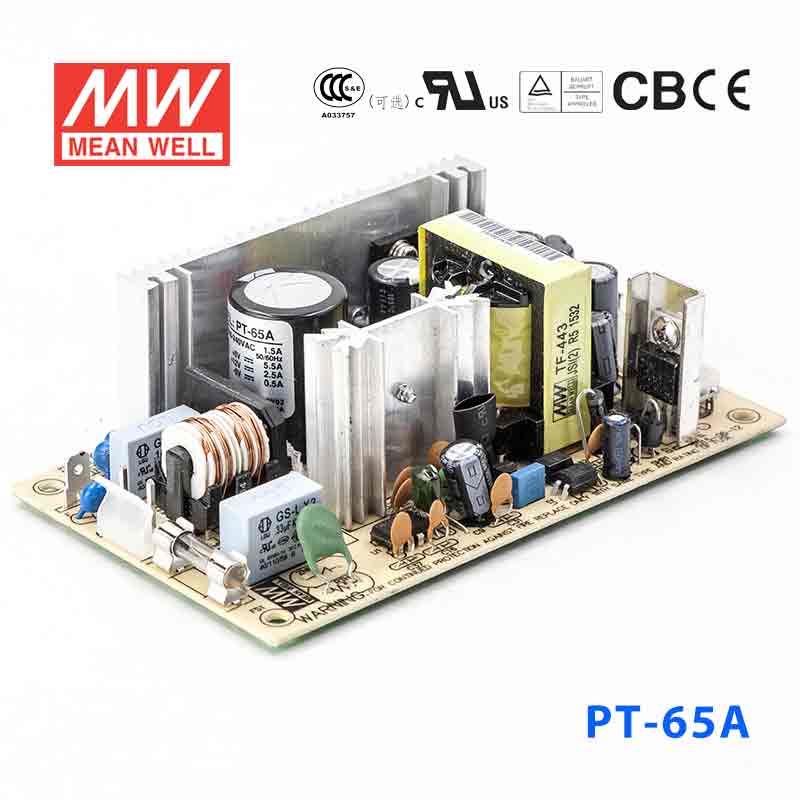

The Mean Well USA PT-65A is an open frame AC/DC converter designed for chassis mounting. It provides a power output of 60W and features an adjustable output with universal input capabilities.
This converter operates with an efficiency of 76% and has three outputs, including a specific -5V output with a current rating of 500 mA. Its dimensions are 127.0mm in length, 76.0mm in width, and 42.0mm in height. The operating temperature range is from -10°C to 60°C, with derating applied.
Key features include adjustable output and universal input, making it versatile for various applications. It is approved by CB, CE, cURus, and TUV, indicating compliance with international safety standards. The applications are primarily for ITE (Commercial) equipment.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1. The mounting type is chassis mount, suitable for integration into various systems.
The PT-65A has a -5V output voltage.
The PT-65A has a power rating of 60W.
The PT-65A supports chassis mount.
The PT-65A operates from -10°C to 60°C with derating.
The PT-65A is RoHS3 Compliant.
The MSL for the PT-65A is 1 Unlimited.
