| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

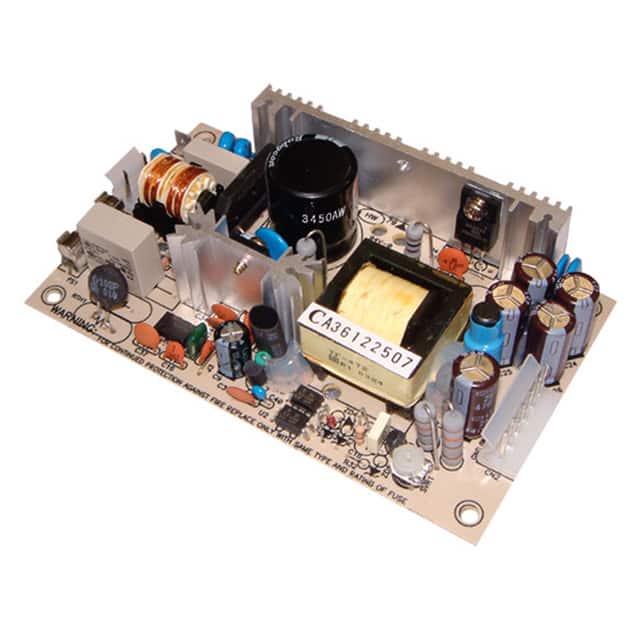

The Mean Well PT-45C is an open frame AC DC power supply designed for international markets with its full-range universal AC input (90-264VAC). This model delivers up to 43.5W of power and offers three output rails: 5V, 15V, and -15V. It is suitable for ITE (Commercial) applications and features adjustable outputs.
With an efficiency of 75%, the PT-45C operates within a temperature range of -10°C to 60°C with derating. It is cooled by free air convection, ensuring no moving parts for enhanced reliability. The dimensions are 127.0mm x 76.0mm x 28.0mm, and it is designed for chassis mounting.
Key specifications include a low leakage current of less than 0.5 mA. The unit is approved by CB, CE, cURus, and TUV, making it suitable for various international equipment manufacturing needs.
The Mean Well PT-45C offers three output voltages: 5V, 15V, and -15V.
The PT-45C has a power rating of 43.5W.
The input voltage range for the PT-45C is 90 to 264 VAC.
The operating temperature range is -10°C to 60°C, with derating applied.
The PT-45C is cooled by free air convection.
The PT-45C uses chassis mounting.
