| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Width |

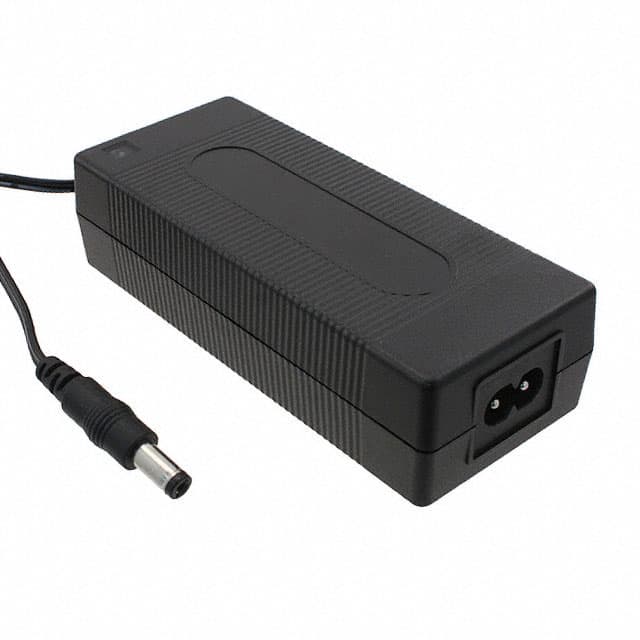

The Phihong USA PSM36W-120L6 is a versatile 36W AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 12V output at 3A, making it suitable for a wide range of electronic devices.
This adapter features a compact and low-profile design, with dimensions of 120.0mm x 50.4mm x 31.4mm. It utilizes an IEC 320 C8 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.2mm) with a positive center polarization. The unit operates efficiently, meeting Level VI energy efficiency standards and consuming a maximum of 30mW at no load.
Designed for international use, the PSM36W-120L6 operates within a temperature range of 0°C to 40°C. It requires a separate power cord, with a recommended length of 1.00m (39.4"). The adapter is classified as Class II and is suitable for various commercial applications requiring reliable power delivery.
The adapter provides 12V DC at 3A, delivering 36W of power.
The adapter operates from 0°C to 40°C.
It uses an IEC 320-C8 input connector; the power cord is sold separately.
It is a Desktop (Class II) adapter.
The adapter meets Level VI efficiency.
It is approved to CB, CE, cULus, cURus, and TUV standards.
The no-load power consumption is 30mW maximum.
