| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

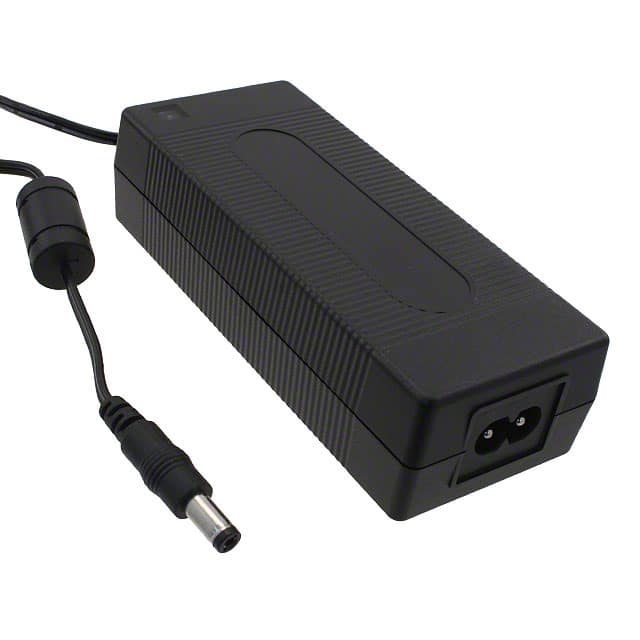

The Phihong USA PSM36W-120-TW2 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output with a maximum current of 3A, providing a total power of 36W.
This adapter features an IEC 320-C8 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.2mm) with positive center polarization. It operates within a temperature range of 0°C to 45°C and meets Level V efficiency standards. The unit has a no-load power consumption of 300mW (Max).
With dimensions of 120.0mm x 50.0mm x 31.5mm, it is suitable for desktop use. The adapter is approved by CE and cULus, indicating compliance with international safety and performance standards. It is designed for international use and comes with a 1.00m cord.
The adapter provides a 12VDC output voltage and a 3A output current.
The adapter has a total power output of 36W.
It uses an IEC 320-C8 input connector.
The dimensions are 120.0mm x 50.0mm x 31.5mm.
The operating temperature range is 0°C to 45°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
