| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

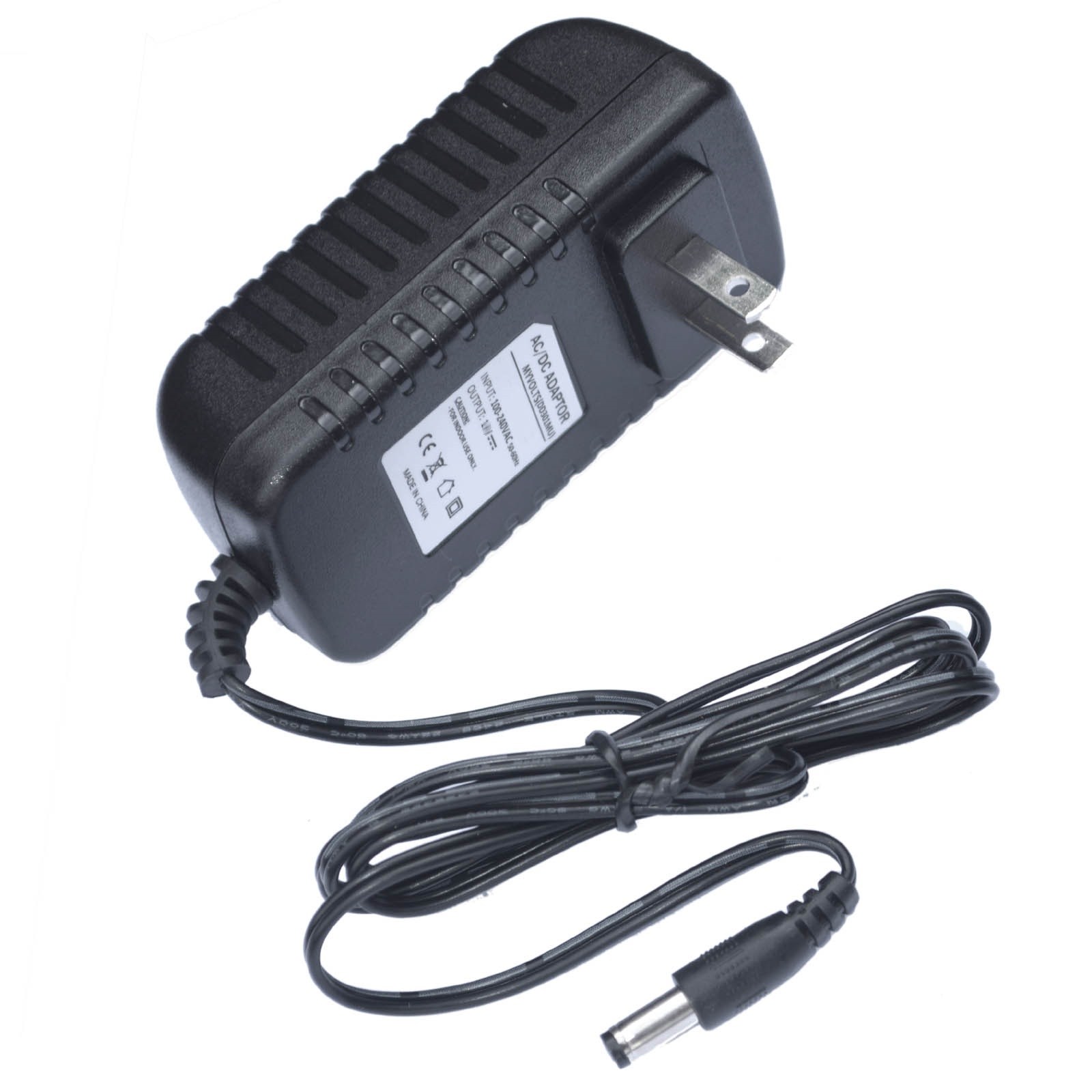

The Phihong USA PSM11R-050 is an AC/DC wall mount adapter with a 5V output voltage and a 10W power rating, delivering up to 2A of current. This adapter is designed for ITE (Commercial) applications and features an Energy Level VI efficiency rating.
Its compact wall mount form factor and international region utilization make it versatile for various setups. The adapter includes features such as electrical noise reduction, heat reduction, and over-voltage protection, ensuring safe and reliable power delivery. The output connector is a standard Barrel Plug with 2.1mm I.D. x 5.5mm O.D., and the input is a multi-blade type.
With an operating temperature range of 0°C to 50°C, the PSM11R-050 is suitable for many environments. It also boasts a low no-load power consumption of 300mW (Max). The adapter is certified by CE, C-Tick, cULus, and GS, indicating compliance with various safety standards.
The Phihong PSM11R-050 adapter has an output voltage of 5V DC and a maximum output current of 2A.
The power rating of the PSM11R-050 adapter is 10W.
The input voltage range for the PSM11R-050 adapter is 100-240V AC.
The PSM11R-050 adapter meets Energy Level VI efficiency.
The dimensions of the PSM11R-050 adapter are 71.7mm in length, 45.0mm in width, and 31.0mm in height.
The operating temperature range for the PSM11R-050 adapter is 0°C to 50°C.
The PSM11R-050 uses a Barrel Plug output connector with 2.1mm I.D. x 5.5mm O.D.
