| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

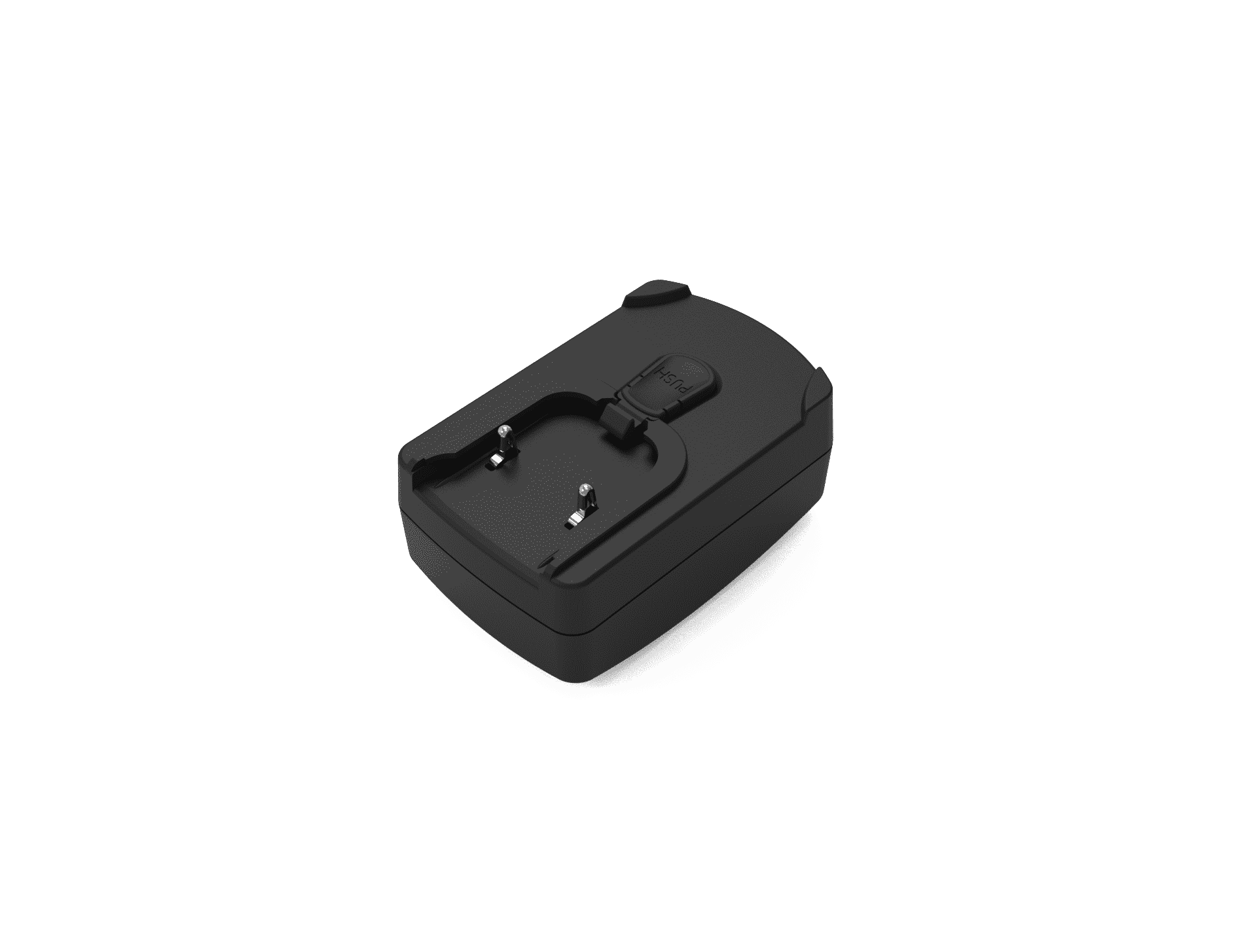

The Phihong USA PSM10R-050A(M)-R is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a 5V output voltage and a 2A output current, providing a total of 10W of power.
This adapter features Level VI efficiency compliance, ensuring energy savings. The input connector is a Multi-Blade type, and the output connector is USB Micro. Its dimensions are 71.7mm in length, 45.0mm in width, and 30.8mm in height. The operating temperature range is from 0°C to 40°C.
Designed as a Class II wall mount adapter, the PSM10R-050A(M)-R is suitable for international use. It adheres to the Standard Number 60950-1 and has approval agencies including AS/NZS, cULus, and IEC. The cord length is 1.20 meters (47.2 inches).
Environmental compliance includes RoHS3 Compliant, REACH Unaffected, and Moisture Sensitivity Level 1. The input type is Multi-Blade, which is sold separately.
The output power is 10W.
The adapter provides a 5V output voltage and a 2A output current.
The operating temperature range is 0°C to 40°C.
Yes, it meets Level VI efficiency standards.
It uses a USB Micro output connector.
The adapter measures 71.7mm in length, 45.0mm in width, and 30.8mm in height.
The status is RoHS3 Compliant.
