| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

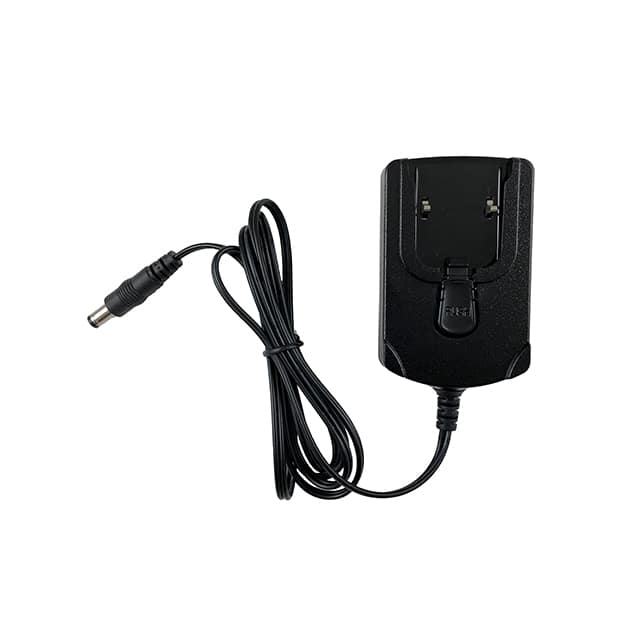

The Phihong USA PSM10R-050A is a versatile AC/DC wall mount adapter delivering 10W of power with a 5V output and 2A current. Designed for ITE (Commercial) applications, this adapter meets Level VI efficiency standards.
It features a multi-blade input connector, compatible with international regions, and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. The adapter operates within a temperature range of 0°C to 40°C and has dimensions of 71.7mm x 45.0mm x 31.0mm. The integrated cord measures 1.20m.
Compliance includes CB, CE, and cULus certifications. The unit is a Wall Mount (Class II) form factor, suitable for various integration needs.
The output power is 10W.
The output voltage is 5V and the output current is 2A.
The adapter has a Level VI efficiency rating.
The operating temperature range is 0°C to 40°C.
The dimensions are 71.7mm in length, 45.0mm in width, and 31.0mm in height.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 10.0mm and positive center polarization.
The adapter is designed for International regions.
