| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

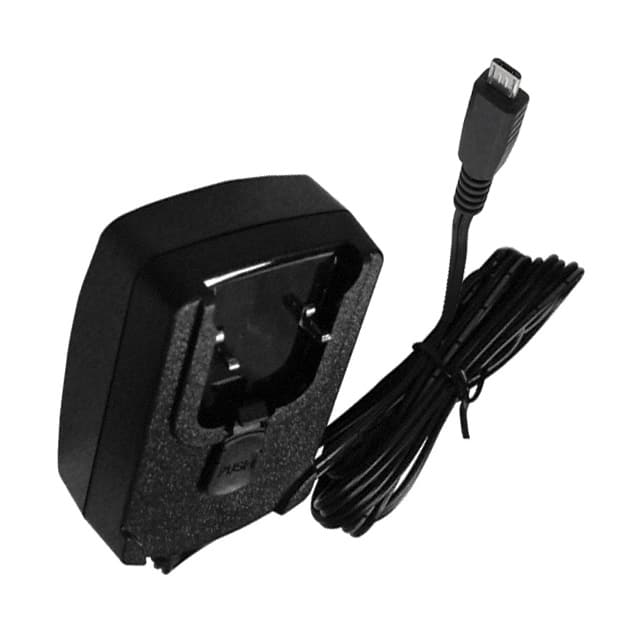

The Phihong USA PSM08R-050(M) is a versatile 8W AC/DC wall mount adapter designed for various applications. It delivers a stable 5V output at up to 1.6A, making it suitable for powering portable equipment, networking devices, and peripherals.
This adapter boasts Efficiency Level IV compliance, ensuring energy savings. It features a convenient Micro-USB output connector and accepts a wide AC input voltage range from 100 to 240V AC. The unit is double insulated and designed with low leakage current.
Key features include a compact mechanical design with dimensions of 71.7mm x 45mm x 29.79mm and a weight of 128g. It operates within a temperature range of 0°C to 50°C and meets FCC Class B and EN55022 Class B emissions standards. Safety approvals include cUL/UL, C-Tick, SAA, PSE, and CCC.
The PSM08R-050(M) is ideal for applications requiring reliable power delivery in a compact form factor. Its international region utilization and broad input voltage range make it suitable for global use.
The PSM08R-050(M) adapter provides a 5V DC output at 1.6A.
The power rating of the PSM08R-050(M) adapter is 8W.
The adapter uses a USB Micro output connector.
The operating temperature range is 0°C to 50°C.
Yes, it meets Efficiency Level IV standards.
The adapter meets FCC Class B and EN55022 Class B emissions standards.
