| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

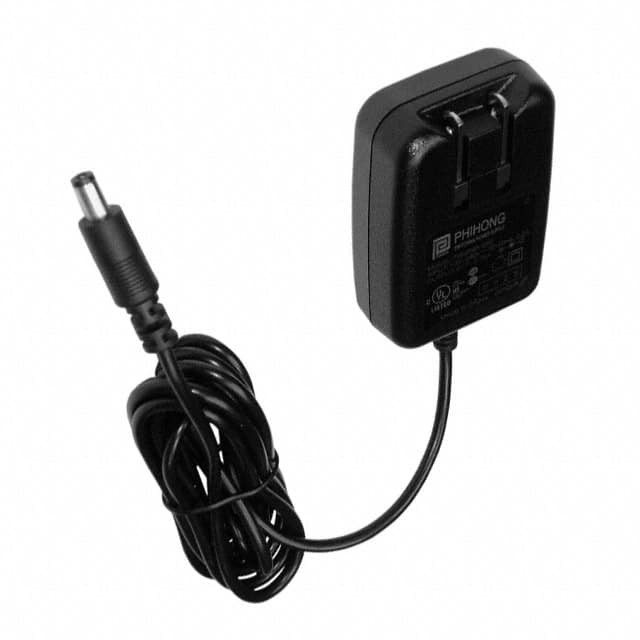

The Phihong USA PSM04A-050(STD) is a compact 4-watt AC/DC wall mount adapter designed for various applications including wireless communications, portable equipment, peripherals, and PDAs. It provides a stable 5V DC output at up to 750mA current, with a maximum power rating of 3.8W.
This adapter features a wide AC input voltage range of 90 to 264VAC and operates with an efficiency of at least 50%, meeting Level IV standards. Key electrical specifications include low ripple and noise (55mV max), line and load regulation of ±5%, and protection against over-voltage and short circuits. The input connector is a NEMA 1-15P fixed blade, and the output connector is a standard 2.1mm x 5.5mm center positive barrel plug.
Designed for convenience, it has a flip-plug mechanism and measures 69.4mm in length, 48mm in width, and 25mm in height, weighing 145g. The operating temperature range is from 0°C to 45°C. Compliance includes cULus safety approvals and CEC Level IV.
This adapter is suitable for ITE (Commercial) applications and North American region utilization. It also features a no-load power consumption of less than 0.5W and a maximum leakage current of 250uA.
The AC input voltage range is 90 to 264 VAC, with a nominal rating of 100 to 240 VAC.
The adapter is a wall mount (Class II) design, packaged in a box.
0°C to 45°C.
5V DC at 750mA (3.8W).
Over voltage protection at 7.5V max and short circuit protection limiting output current to 2A.
69.4mm x 48mm x 25mm, weight 145g.
FCC Part 15 Class B and CISPR 22 Class B.
