| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

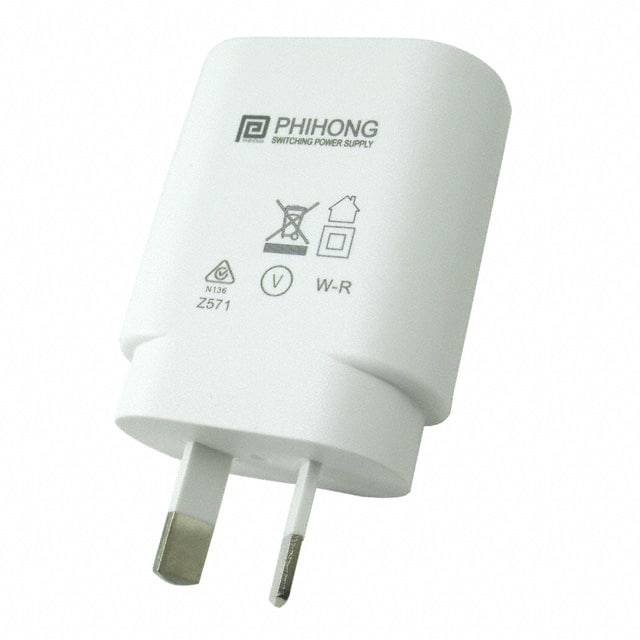

The Phihong USA PSM03S-050Q-3W-R is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 5V output with a maximum current of 550mA, delivering up to 2.75W of power. The adapter operates within a temperature range of -10°C to 40°C and features a USB A receptacle for output connectivity.
This adapter utilizes a fixed blade input connector suitable for Australia (AS 3112). It meets safety standards such as 60950-1 and 62368-1 and is RoHS3 Compliant. The unit is designed as a Wall Mount (Class II) form factor and comes in bulk packaging.
Key specifications include a low no-load power consumption of 150mW (Max) and an efficiency rating of Level V. Its dimensions are 25.0mm L x 43.0mm W x 53.2mm H, with a weight of 81.646627g.
5V.
550mA.
-10°C to 40°C.
Wall mount (Class II).
AS 3112.
USB A receptacle.
60950-1 and 62368-1.
