| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

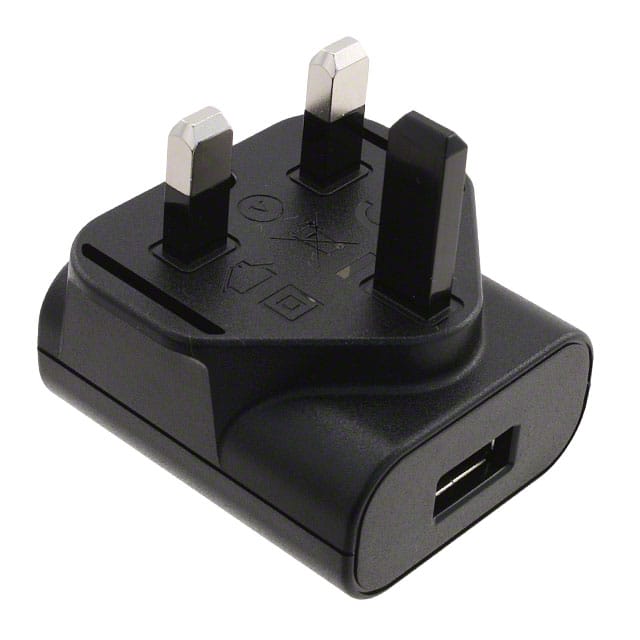

The Phihong USA PSM03K-050Q is a compact AC/DC wall mount adapter designed for various applications. It provides a stable 5V DC output with a maximum current of 0.55A, delivering up to 2.8W of power. The adapter meets Level VI efficiency requirements and features low standby power consumption.
Designed for use in the United Kingdom, it has a fixed blade input connector (BS 1363). The output is delivered via a USB A receptacle, making it suitable for charging personal electronics, PDAs, and digital cameras. The adapter operates within a wide AC input voltage range of 90 to 264 VAC.
Key specifications include a maximum ripple and noise of 100mV P-P, line and load regulation of ±5%, and over-voltage protection below 8.5V. The operating temperature range is 0 to 40°C. It also complies with various safety and emissions standards, including CE, cULus, FCC Class B, and EN55032 Class B.
With its fixed blade design and USB output, the PSM03K-050Q is a practical power solution for portable electronic devices. Its compact dimensions (49mm x 43mm x 21mm) make it suitable for space-constrained environments.
The PSM03K-050Q provides a 5V DC output with a maximum power of 2.8W.
The PSM03K-050Q features a USB A receptacle output connector.
The PSM03K-050Q has a fixed blade input connector, specifically BS 1363, for use in the United Kingdom.
The operating temperature range for the PSM03K-050Q is 0 to 40°C.
Yes, the PSM03K-050Q meets Level VI efficiency requirements and has a standby power of less than 0.03W.
