| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

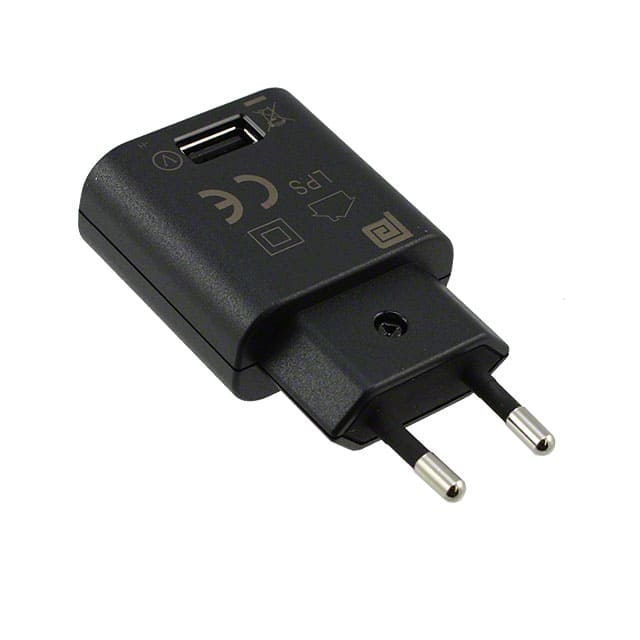

The Phihong USA PSM03E-050Q is an AC/DC wall mount adapter delivering a 5V output with a maximum power of 2.8W and a current rating of 550mA. This adapter is designed for ITE (Commercial) applications and meets Level VI efficiency standards, along with CoC Tier 2.
Featuring a compact wall mount form factor (Class II), it has dimensions of 21.0mm x 43.0mm x 60.2mm. The input connector is CEE 7/16, and the output is a USB A Receptacle. The operating temperature range is from 0°C to 40°C, with a low no-load power consumption of 150mW maximum.
This adapter is approved by cULus and is suitable for use in Europe. It complies with RoHS3 standards and has an MSL rating of 1.
The output voltage is 5V.
The output current is 550mA.
The operating temperature range is 0°C to 40°C.
It meets Level VI and CoC Tier 2 efficiency standards.
It uses a CEE 7/16 input connector.
It has a USB A receptacle output connector.
It is a wall mount (Class II) adapter.
