| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

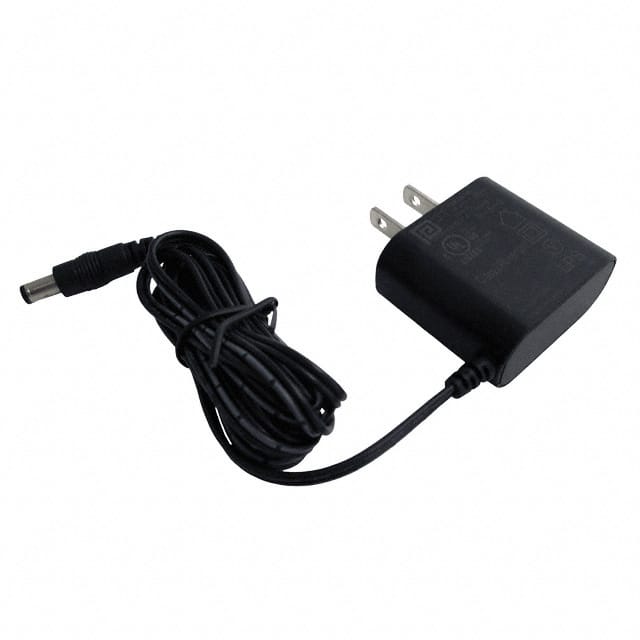

The Phihong USA PSM03A-050-R is an AC/DC wall mount adapter designed for commercial applications, specifically ITE (Information Technology Equipment).
This adapter provides a stable 5V output with a maximum current of 0.55A, delivering a total power of 3W. It operates with a universal input voltage range of 100-240 VAC, making it suitable for global use. The unit meets Level VI efficiency standards, ensuring energy conservation.
Key electrical specifications include a maximum no-load power consumption of 100mW. The operating temperature range is from 0°C to 40°C. The adapter features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization.
Compliance is certified by cULus, adhering to standards such as 60950-1 and 62368-1. The mechanical dimensions are 21.0mm in length, 43.0mm in width, and 42.0mm in height.
The PSM03A-050-R provides a 5V output at 0.55A.
The adapter has a power rating of 3W.
The adapter accepts an input voltage range of 100-240 VAC.
This adapter meets Level VI efficiency standards.
The maximum no-load power consumption is 100mW.
The adapter can operate in temperatures ranging from 0°C to 40°C.
It uses a barrel plug with a 2.1mm I.D. x 5.5mm O.D. x 10.0mm size and positive center polarization.
