| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | 1028 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Dielectric Withstanding Voltage | |
| Fader Type | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature Range | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Travel Range | |
| Width |

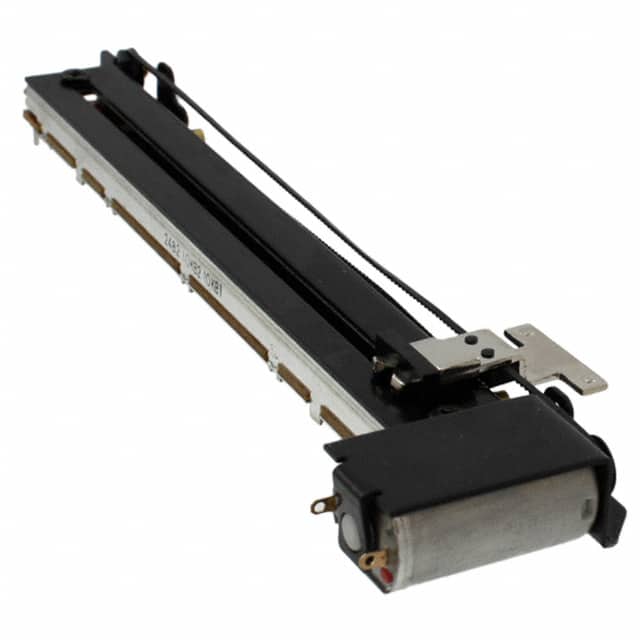

The Bourns PSM01-081A-103B2 is a motorized slide potentiometer designed for various applications requiring precise linear control. It features a resistance value of 10 kΩ with a standard tolerance of ±20% and a power rating of 0.5W.
This potentiometer has a travel length of 100mm, allowing for a wide range of adjustment. The adjustment type is top, and it is designed for through-hole mounting, ensuring secure integration into PCBs. The fader type is motorized, indicating its suitability for automated or remote control systems.
Key electrical characteristics include an insulation resistance of 100 megohms minimum at 250 VDC and a dielectric withstanding voltage of 250 V AC. It supports both linear and audio tapers, with specific power ratings for each. The operational life is rated for 100,000 cycles, ensuring durability in demanding environments.
Environmental specifications include an operating temperature range of -10 °C to +55 °C and resistance to solder heat of ±5%. The unit is also specified with MSL 1 and REACH Unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PSM01-081A-103B2 is 10 kΩ.
The power rating for linear applications is 0.5 watt.
The travel length is 100mm.
This potentiometer supports through-hole mounting.
The operating temperature range is -10 °C to +55 °C.
