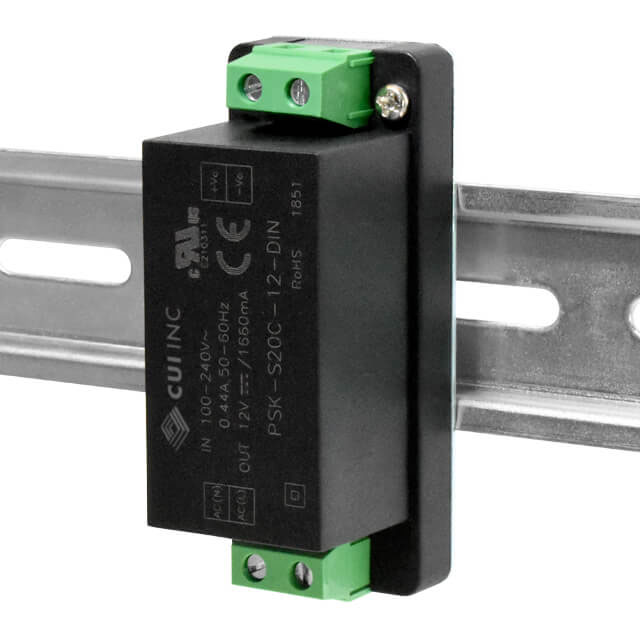

The CUI Inc. PSK-S20C-12-DIN is an AC/DC DIN Rail Power Supply designed for ITE (Commercial) applications. This compact unit delivers 20W of power with a single 12V output at 1.66A.
Key electrical specifications include a wide input voltage range of 85-264 VAC or 100-370 VDC, and an efficiency rating of 82%. The operating temperature range is -40°C to 70°C with derating. The power supply offers 4 kV isolation.
Designed for easy integration, it features a Through Hole mounting type and comes in a 4-DIP Module package. The unit complies with various standards including 55024, 55032 Class A, 60950-1, 61000-3-2, and 62368-1.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The PSK-S20C-12-DIN is part of the PSK-S20C series.
The output voltage is 12V.
The maximum output current is 1.66A.
The input voltage range is 85 to 264 VAC or 100 to 370 VDC.
The operating temperature range is -40°C to 70°C, with derating.
The power rating is 20W.
The dimensions are 53.8mm in length, 28.8mm in width, and 23.5mm in height.
The isolation voltage is 4 kV.
