| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

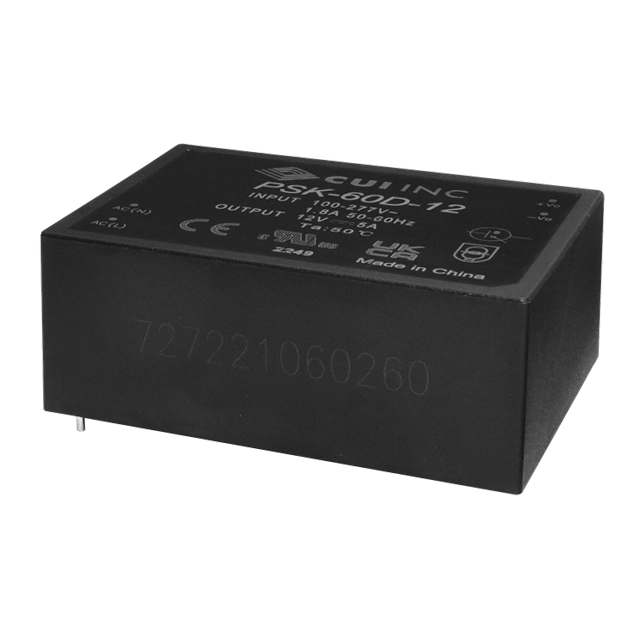

The CUI Inc. PSK-60D-12 is a board-mount AC-DC converter delivering 60W of power with a single 12VDC output. It operates with a wide input voltage range of 85 to 305 VAC, making it suitable for various global applications. This converter is designed for through-hole mounting and comes in an enclosed package.
Key electrical specifications include a 5A output current and 91% efficiency. The operating temperature range is -40°C to 85°C with derating. The unit meets safety standards such as 60335-1 and 62368-1.
This product is Not Recommended for New Design (NRND). Availability is limited to remaining stock in distribution. Consider PSK-S60B-12 as a recommended replacement.
The PSK-60D-12 AC-DC converter has an output voltage of 12 VDC.
The PSK-60D-12 AC-DC converter has a power rating of 60 W.
The PSK-60D-12 AC-DC converter accepts an input voltage range of 85 to 305 VAC.
The PSK-60D-12 AC-DC converter uses through-hole mounting.
The PSK-60D-12 AC-DC converter operates in a temperature range of -40°C to 85°C, with derating.
The PSK-60D-12 AC-DC converter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PSK-60D-12 AC-DC converter is 1 Unlimited.
