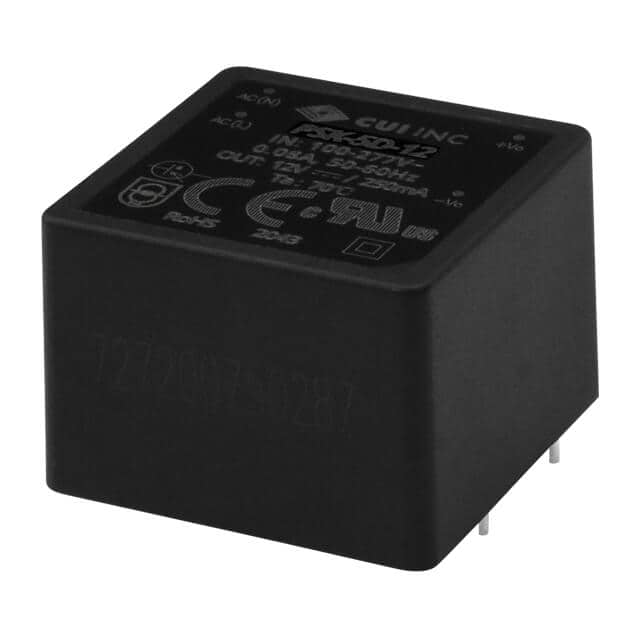

The CUI Inc. PSK-5D-12 is an internal AC-DC power supply designed for various applications. It operates with a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it versatile for global use.
This power supply delivers a nominal 12Vdc output at a maximum current of 416mA, providing up to 5W of power. It boasts a typical efficiency of 80.5% at 230 VAC and features protections such as over-voltage, over-current, and short-circuit.
The PSK-5D-12 is housed in a compact 1 x 1 inch encapsulated package, suitable for board mounting. Its operating temperature range is -40°C to +85°C, with derating. The unit is certified to safety standards including 62368, 61558, and 60335, and meets Class B emissions standards.
Key electrical specifications include a line regulation of ±0.5% and load regulation of ±1.0%. It also offers a hold-up time of 5ms at 115 VAC and 50ms at 230 VAC. The power supply is designed for applications in Household Appliances and ITE (Commercial) environments.
The PSK-5D-12 has a nominal output voltage of 12 Vdc.
The PSK-5D-12 provides a maximum output power of 5 W.
The input voltage range is 85 to 305 VAC or 100 to 430 VDC.
The operating temperature range is -40°C to +85°C, with derating.
It is certified to 62368, 61558, and 60335 safety standards.
