| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

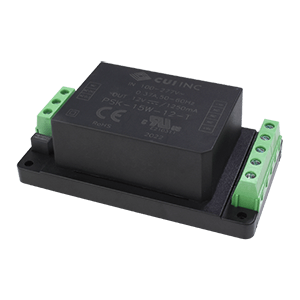

The CUI Inc. PSK-15W-3-T is an AC/DC converter designed for ITE (Commercial) applications. It provides a single 3.3VDC output at 3A, delivering up to 10W of power. The unit operates with a wide input voltage range of 85 to 305 VAC and features an efficiency of 73%.
This converter is housed in an encapsulated package and designed for chassis mounting, making it suitable for integration into various systems. Its dimensions are 96.1mm x 54mm x 31mm (3.78" x 2.12" x 1.22"). The operating temperature range is -40°C to 85°C with derating. Safety standards include 62368-1, with approvals from CE and cURus.
Compliance information indicates RoHS3 compliance and an MSL of 1. The product is noted as discontinued.
The PSK-15W-3-T provides a 3.3 VDC output voltage at 3 A.
The input voltage range for the PSK-15W-3-T is 85 to 305 VAC.
The PSK-15W-3-T uses chassis mount.
The operating temperature range is -40°C to 85°C (With Derating).
