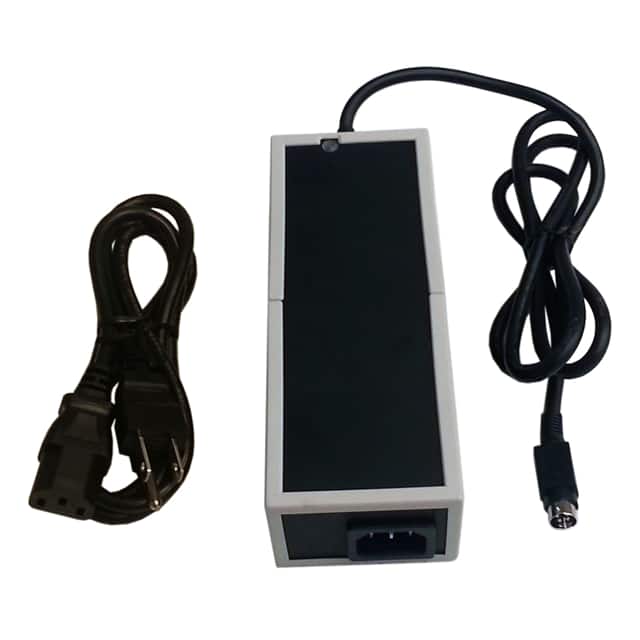

PSHP-65-180-DIN The Tycon Systems Inc. PSHP-65-180-DIN is a 182W AC/DC desktop adapter with a 65V output voltage and 2.8A current. It features an IEC 320-C14 input connector and a Power DIN, 4 Pin output connector.
Mfr Part #:

PSHP-65-180-DIN

Mfr Name: Tycon Systems Inc.
Tycon Systems Inc.
The Tycon Systems Inc. PSHP-65-180-DIN is a 182W AC/DC desktop adapter with a 65V output voltage and 2.8A current. It features an IEC 320-C14 input connector and a Power DIN, 4 Pin output connector.
Stock on Request

PSHP-65-180-DIN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
Military Grade
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

PSHP-65-180-DIN Description

Short technical summary and product information.

This AC/DC desktop adapter from Tycon Systems Inc., part number PSHP-65-180-DIN, delivers 182 watts of power with a 65V output voltage and 2.8A current. It is designed for ITE (Commercial) applications and operates with an input voltage range of 100-240 VAC.



The adapter features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its physical dimensions are 175.0mm in length, 65.0mm in width, and 43.0mm in height. The operating temperature range is from -20°C to 50°C, with an efficiency rating of 85%.



Compliance is indicated by CE, cUL, FCC, and TUV approvals. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is REACH Unaffected. The cord length is 47.2 inches (1.20m).

PSHP-65-180-DIN Quick Information

Product Type: AC/DC Desktop Adapter
Canonical Name: Tycon Systems Inc. PSHP-65-180-DIN AC/DC Desktop Adapter
Subcategory: Desktop Adapter

PSHP-65-180-DIN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PSHP-65-180-DIN Features

  • 182W AC/DC desktop power adapter.
  • 65V output voltage at 2.8A current.
  • IEC 320-C14 input connector.
  • 4-pin Power DIN output connector.
  • Wide 100-240 VAC input range.

PSHP-65-180-DIN Applications

  • Suitable for commercial ITE equipment.
  • Powers networking hardware and peripherals.
  • Used in point-of-sale and kiosk terminals.
  • Ideal for telecommunications equipment.

PSHP-65-180-DIN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the PSHP-65-180-DIN?

The PSHP-65-180-DIN provides a 65V output voltage and 2.8A output current.

What is the power rating of this AC/DC adapter?

This adapter has a power rating of 182 W.

What type of input and output connectors does the PSHP-65-180-DIN use?

It features an IEC 320-C14 input connector and a Power DIN, 4 Pin output connector.

What is the operating temperature range for this adapter?

The adapter can operate in temperatures ranging from -20°C to 50°C.

What are the physical dimensions of the PSHP-65-180-DIN?

The dimensions are 175.0mm in length, 65.0mm in width, and 43.0mm in height.

Is the PSHP-65-180-DIN RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
