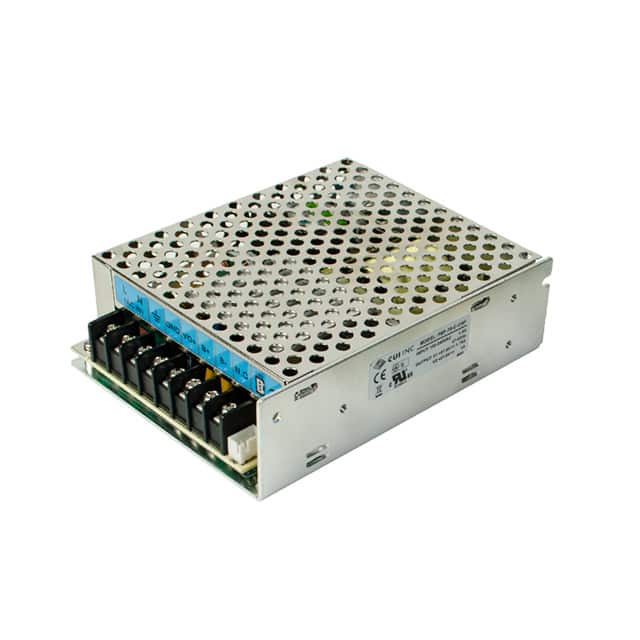

The CUI Inc. PSF-75-A-CNF is a versatile AC-DC power supply designed for various applications. It provides up to 75W of continuous power with dual 13.8Vdc outputs, capable of delivering up to 5.5A on one output and 2.07A on the other.
This power supply operates with a universal input voltage range of 90-264 Vac and a frequency of 47-63 Hz, making it suitable for global use. It boasts an efficiency of up to 86% and includes features such as built-in constant current limit circuitry, and protections against short circuit, overload, over voltage, and brown-out conditions.
The PSF-75-A-CNF is housed in an enclosed chassis mount package, with dimensions of 129.5mm x 97.5mm x 37.5mm. It operates within a temperature range of -20°C to 70°C with derating. Safety approvals include CE, cURus, and TUV, making it a reliable choice for ITE (Commercial) applications.
90-264 Vac.
Dual 13.8 Vdc outputs; main 5.5 A, second 2.07 A.
-20°C to 70°C with derating.
86% typical.
Over voltage protection at 115% and over current protection at 100%.
Enclosed, chassis mount.
129.5 x 97.5 x 37.5 mm.
