| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

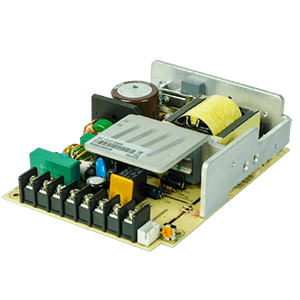

The CUI Inc. PSF-100-B is a 100W AC/DC converter designed for commercial applications. It features an open frame, chassis mount package, making it suitable for integration into various systems.
Key electrical specifications include an input voltage range of 90 to 264 VAC, providing universal compatibility. The converter offers three output voltages: 13.8VDC, 13.8VDC, and 5VDC, with corresponding output currents of 6.2A, 2.875A, and 3A respectively. It boasts an efficiency of 85% and operates within a temperature range of -20°C to 70°C with derating.
This model is equipped with features such as adjustable output, DC input capability, and universal input. Safety approvals include CE, TUV, and UL/cUL, ensuring compliance with industry standards. The dimensions are 123 x 95 x 31 mm (4.8 x 3.7 x 1.2 inches). The product is RoHS3 compliant and has an MSL rating of 1.
The PSF-100-B AC/DC converter has a power rating of 100W.
The input voltage range for the PSF-100-B is 90 to 264 VAC.
The PSF-100-B converter has 3 outputs.
The output voltages for the PSF-100-B are 13.8VDC, 13.8VDC, and 5VDC.
The dimensions of the PSF-100-B are 123 x 95 x 31 mm (4.8 x 3.7 x 1.2 inches).
The PSF-100-B uses chassis mount.
The operating temperature range for the PSF-100-B is -20°C to 70°C (With Derating).
