| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

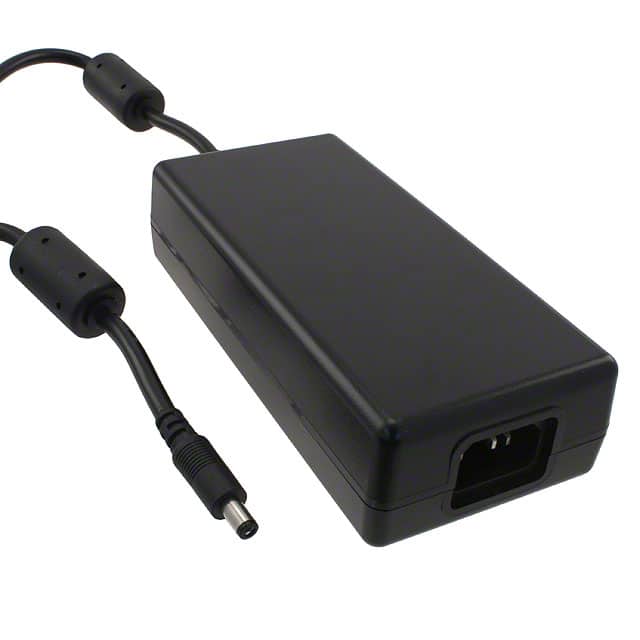

The Phihong USA PSC75U-480 is an AC/DC external desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 48V output with a maximum power of 72W and a current rating of 1.5A.
This adapter meets Level VI efficiency standards and operates within a temperature range of 0°C to 40°C. It features an IEC 320-C14 input connector, requiring a separate power cord. The output is delivered via a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, featuring positive center polarization. The unit's dimensions are 150.5mm x 70.5mm x 39.0mm.
Compliance includes CE and cULus approvals. The adapter is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. Its no-load power consumption is a maximum of 500mW.
The output voltage is 48V DC.
It is rated at 72W.
0°C to 40°C.
It has a 2.1mm ID x 5.5mm OD barrel plug with positive center.
It meets Energy Star Level VI efficiency.
It is certified to CE and cULus standards.
