| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

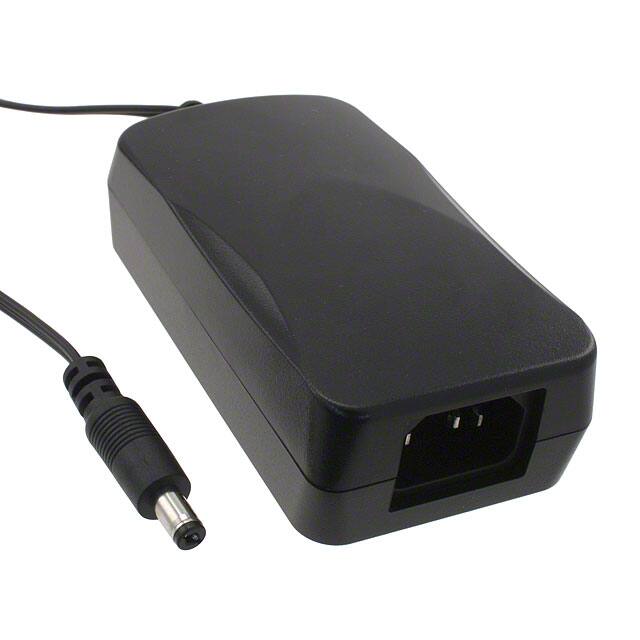

The Phihong USA PSC30U-120V is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output with a maximum current of 2.5A, providing a total power of 30W.
This adapter utilizes an IEC 320-C14 input connector, requiring a separate power cord. The output is delivered via a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter. It operates within a temperature range of 0°C to 40°C and meets Level IV efficiency standards. The compact dimensions are 98.5mm x 55.0mm x 31.5mm.
Designed for international use, the PSC30U-120V has a positive center polarization for its output connector. It also features a low no-load power consumption of 500mW maximum. The unit is compliant with RoHS3 standards and has an MSL of 1.
The input voltage range is 100-240 VAC.
The output is 12 VDC at 2.5 A.
The adapter provides 30 W of power.
The operating temperature range is 0°C to 40°C.
It meets Level IV efficiency.
It has a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, positive center polarity.
It carries cULus approval.
