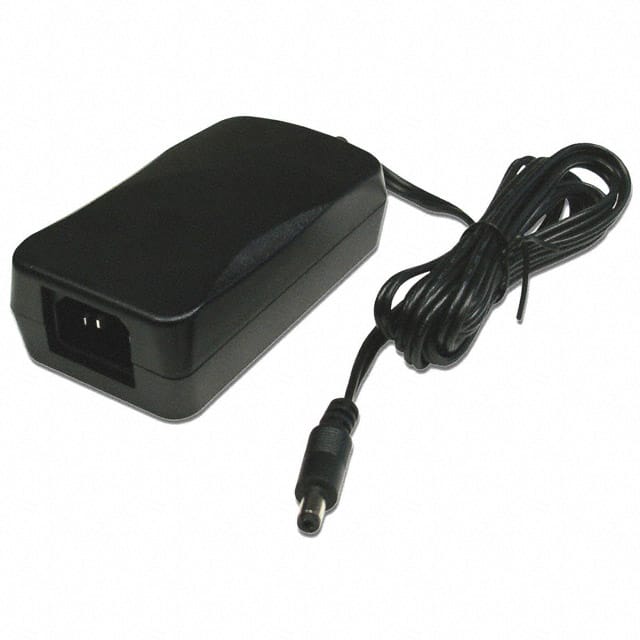

The Phihong USA PSC30U-050 is a versatile 20W AC/DC desktop adapter designed for various applications including portable equipment, networking, and peripherals. It operates with a universal input voltage range of 90 to 264V AC and a frequency of 47 to 63Hz, making it suitable for international use.
The adapter provides a stable 5V DC output with a maximum load current of 4A. It boasts an efficiency of Level IV and meets EISA energy efficiency compliance. Key features include a non-vented, spill-proof case, low profile design, and Class B EMI compliance.
Mechanical specifications include dimensions of 98.5mm in length, 55.0mm in width, and 31.5mm in height, with a weight of 243g. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center. The input connector is an IEC 320-C14.
Environmental and safety features include an operating temperature range of 0°C to 40°C, over-voltage protection, and auto-restart short-circuit protection. It also meets CEC and EISA requirements and is compliant with California Proposition 65.
The PSC30U-050 adapter provides a 5V DC output with a maximum power of 20W.
The adapter accepts an AC input voltage range of 90 to 264V.
It uses a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 10.0mm size and positive center polarization.
The operating temperature range is from 0°C to 40°C.
Yes, it meets EISA Energy Efficiency Compliance and is Level IV compliant.
It has cUL/UL, TUV, CE, SAA, and C-Tick safety approvals.
