| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

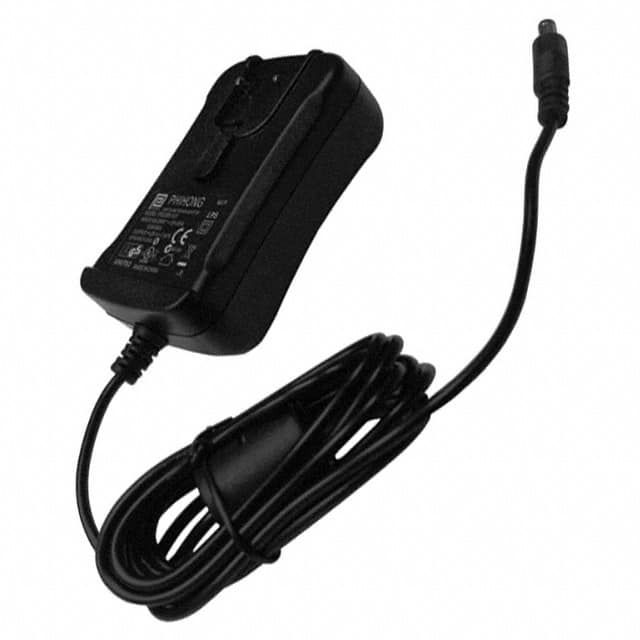

The Phihong USA PSC30R-180 is a versatile AC/DC wall mount adapter delivering 30 watts of power. It features an 18V output voltage and a 1.67A current rating, suitable for various ITE (Commercial) applications.
This adapter operates within a temperature range of 0°C to 40°C and boasts Level IV efficiency. Its compact dimensions are 100.0mm x 63.0mm x 36.0mm, with a cord length of 1.85 meters. The output connector is a standard Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 10.0mm dimensions and positive center polarization.
Designed for international use, the PSC30R-180 has an input type of Multi-Blade and is classified as a Wall Mount (Class II) adapter. It meets C-Tick and cULus approval agency standards, ensuring reliable performance and safety for electronic equipment.
The PSC30R-180 adapter provides an output voltage of 18V and an output current of 1.67A.
The power rating of the PSC30R-180 adapter is 30W.
The adapter operates within a temperature range of 0°C to 40°C.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 10.0mm dimensions and positive center polarization.
The dimensions are 100.0mm in length, 63.0mm in width, and 36.0mm in height.
The cord length is 72.83 inches (1.85m).
The adapter meets Level IV efficiency.
