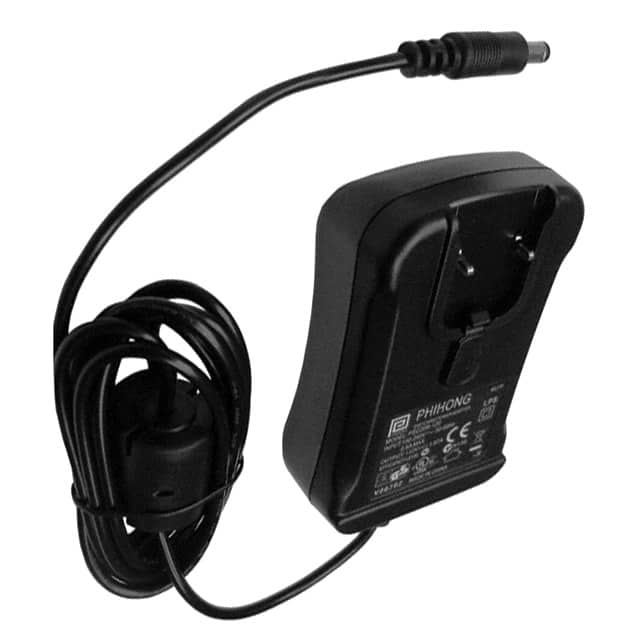

The Phihong USA PSC20R-180 is a versatile 20-watt AC/DC adapter designed for ITE (Commercial) applications. It provides a stable 18V DC output at 1.11A, making it suitable for a wide range of peripherals, point of sale equipment, gaming machines, and network equipment.
This adapter series meets CEC and EISA requirements, featuring Efficiency Level IV compliance and no-load power saving, consuming only 0.5W maximum at no load. It operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63 Hz. The unit is Class II double insulated and offers Class B EMI performance according to FCC and EN55022 standards.
Designed as a wall-mount unit, the PSC20R-180 features a standard 2.1x5.5mm center-positive barrel plug output connector. Its mechanical characteristics include dimensions of 100mm x 63mm x 36mm and a weight of 260g. The operating temperature range is from 0°C to +40°C, with non-operation temperatures from -25°C to +85°C. Safety approvals include cUL/UL, CE, TUV, C-Tick, and SAA.
0 to +40°C.
90 to 264 VAC, 47 to 63 Hz.
Level IV, with average efficiency greater than 77%.
1.11A.
Over voltage protection by zener clamping (>120%), over current protection with auto restart, and short circuit protection (output can be shorted without damage).
cUL/UL, CE, TUV, C-Tick, and SAA.
2.1x5.5mm barrel plug, center positive.
