| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

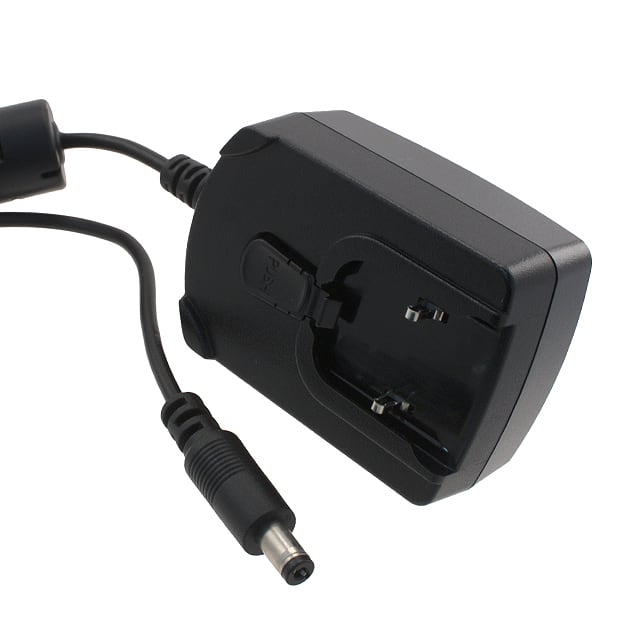

The Phihong USA PSC15R-075 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 7.5V output with a maximum current of 2A, totaling 15W of power.
This adapter meets stringent Level VI efficiency requirements and is compliant with EISA standards. It also features Class B EMI compliance, ensuring minimal electromagnetic interference. For safety and reliability, it includes double insulation, auto-restart short circuit protection, and over-voltage protection via Zener clamping.
The unit operates within a temperature range of 0°C to 40°C and has a non-operation range of -40°C to 85°C. Its mechanical dimensions are 71.7mm in length, 45.0mm in width, and 33.0mm in height, with a weight of 151g. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center pin. The input is a multi-blade type, with interchangeable clips sold separately.
Safety approvals include CB, CE, and cULus. The adapter is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 7.5V and the output current is 2A.
90 to 264 VAC.
Level VI efficiency.
0°C to +40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm, positive center.
Yes, with auto-restart.
71.7mm x 45.0mm x 33.0mm.
