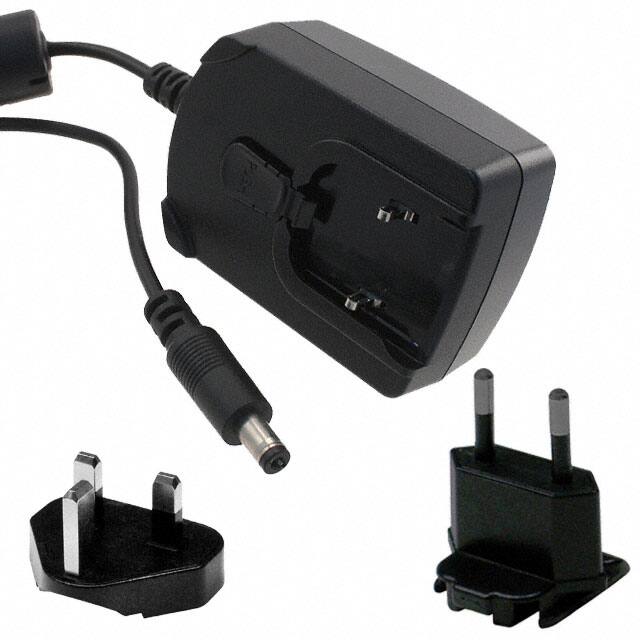

The Phihong USA PSC15R-050-RPE-RPK is a 15-watt AC/DC external wall mount adapter designed for ITE (Commercial) applications. It provides a stable 5V DC output with a maximum current of 3A.
This adapter features a Class II design and meets Level VI efficiency requirements, ensuring energy-conscious operation. It operates within a wide AC input voltage range of 90 to 264 VAC and a frequency of 47 to 63Hz. The adapter includes protection features such as over-current and short-circuit protection with auto-restart.
Key specifications include a low no-load power consumption of 100mW maximum and a hold-up time of 8mS minimum. The physical dimensions are 71.7mm x 45.0mm x 33.0mm, and it weighs 151g. The output is delivered via a standard 2.1mm x 5.5mm barrel plug with a positive center polarization. The integrated cord length is 1.50 meters.
Safety approvals include AS/NZS, cULus, and IEC, adhering to the IEC 60950-1 standard. The operating temperature range is from 0°C to 40°C. The adapter is designed for double insulation and meets Class B EMI standards.
90 to 264 VAC.
5V DC at 3A, 15W maximum.
0°C to +40°C.
Wall mount (Class II) with multi-blade input connector and 2.1mm x 5.5mm barrel plug output, positive center.
Over-current (short circuit auto-restart), over-voltage (Zener clamping), and short circuit protection allowing output to be shorted without damage.
Level VI.
71.7mm x 45.0mm x 33.0mm (2.82" x 1.77" x 1.30").
