| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

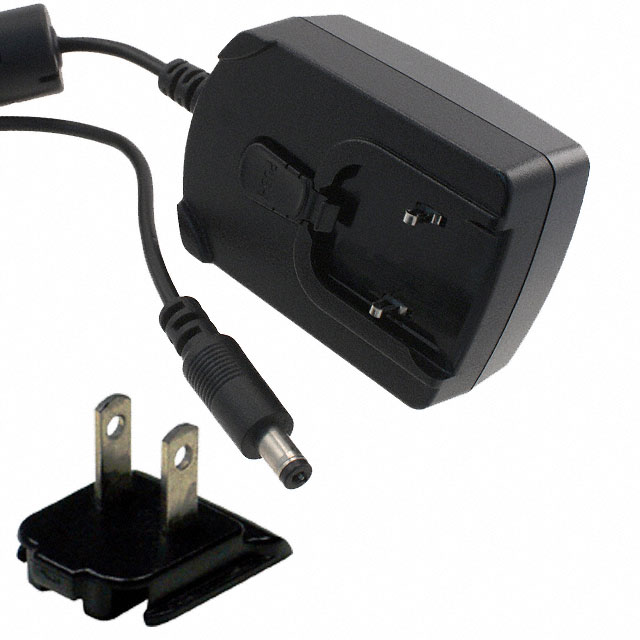

The Phihong USA PSC15R-050-RPA is a 15-watt AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a 5V DC output with a maximum current of 3A, delivering a total of 15W of power.
This adapter complies with Level VI efficiency requirements and operates within a wide input voltage range of 90 to 264 VAC. It includes safety approvals from AS/NZS, cULus, and IEC, and adheres to the 60950-1 standard. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center.
Designed for convenience, the PSC15R-050-RPA utilizes a NEMA 1-15P input connector and is compatible with interchangeable multi-blades (sold separately). Its dimensions are 71.7mm x 45.0mm x 33.0mm, and it operates within a temperature range of 0°C to 40°C. The adapter is double insulated and features Class B EMI compliance.
90 to 264 VAC (rated 100-240 VAC).
5V DC at 3A maximum, 15W total power.
Level VI.
FCC Class B and EN55022 Class B.
Over current (short circuit auto-restart), short circuit (output can be shorted without damage), and over voltage protection (Zener clamping at >120% of limit).
0°C to +40°C.
Wall mount (Class II), 71.7 x 45.0 x 33.0 mm (2.82 x 1.77 x 1.30 inches), weighing 151g.
