| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

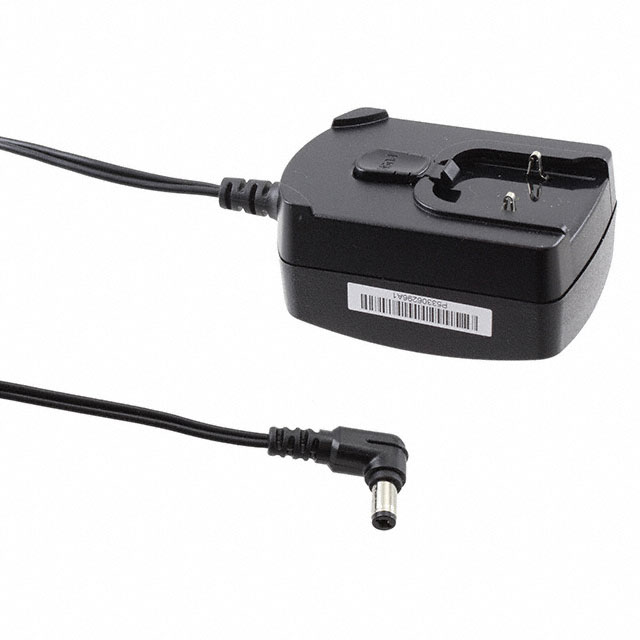

The Phihong USA PSC15R-050-R-CR1 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V DC output with a maximum current of 3A, providing a total power of 15W.
This adapter features Level VI efficiency compliance, ensuring energy savings and reduced heat generation. It operates within a wide AC input voltage range of 90 to 264 VAC and a frequency of 47 to 63 Hz. The unit is double insulated and meets Class B EMI standards.
Key electrical specifications include a maximum ripple of 100mV, a no-load power consumption of 100mW (max), and a hold-up time of 8mS minimum. Safety features include over-current, short-circuit, and over-voltage protection.
Mechanically, the adapter has dimensions of 71.7mm x 45.0mm x 33.0mm and weighs 151.05g. It utilizes a 5.5mm x 2.1mm barrel plug output connector with a positive center pin and a multi-blade input connector, sold separately. The integrated cord length is 1.50m.
The adapter outputs a nominal 5V DC at a maximum of 3A.
It accepts a universal AC input ranging from 90 to 264VAC at 47 to 63Hz.
The device uses a wall mount Class II form factor measuring 71.7mm by 45.0mm by 33.0mm.
It features short circuit auto restart, over current protection, and over voltage clamping above 120 percent of the limit.
The unit operates reliably within a temperature range of 0°C to 40°C.
Yes, it complies with FCC Class B and EN55022 Class B EMI requirements.
