| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

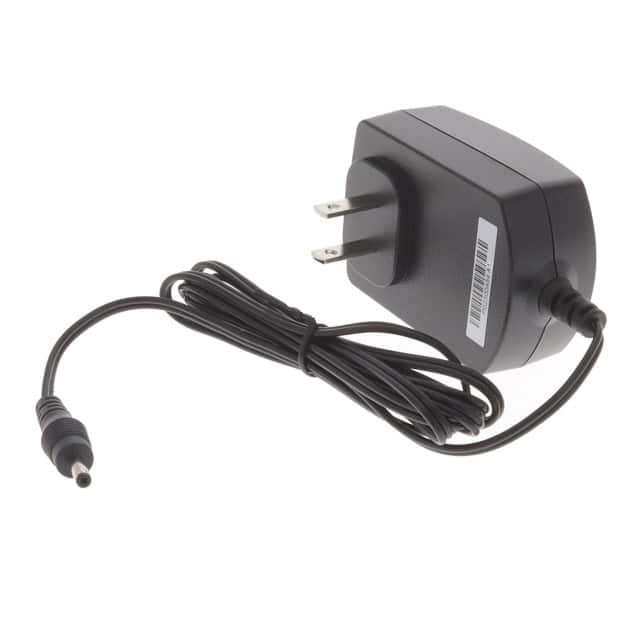

The Phihong USA PSC15A-060-C4 is a versatile AC/DC wall mount adapter designed for ITE (Information Technology Equipment) commercial applications. This adapter delivers a stable 6V DC output with a maximum current of 2.5A, providing a total power of 15W. It meets Level VI efficiency standards, ensuring energy savings and reduced heat generation.
The adapter features a NEMA 1-15P input connector for North American power outlets and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. Its compact dimensions of 71.5mm x 50.0mm x 31.2mm make it suitable for various installations. The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of 100mW maximum.
Designed for reliability, the PSC15A-060-C4 is compliant with CE and cULus safety standards. It is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under normal conditions. The adapter is intended for wall mounting and is classified as Class II.
The PSC15A-060-C4 adapter provides a 6V DC output at 2.5A.
The adapter has a power rating of 15W.
This adapter uses a NEMA 1-15P input connector.
The adapter measures 71.5mm in length, 50.0mm in width, and 31.2mm in height.
The adapter operates within a temperature range of 0°C to 40°C.
Yes, the adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
