| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

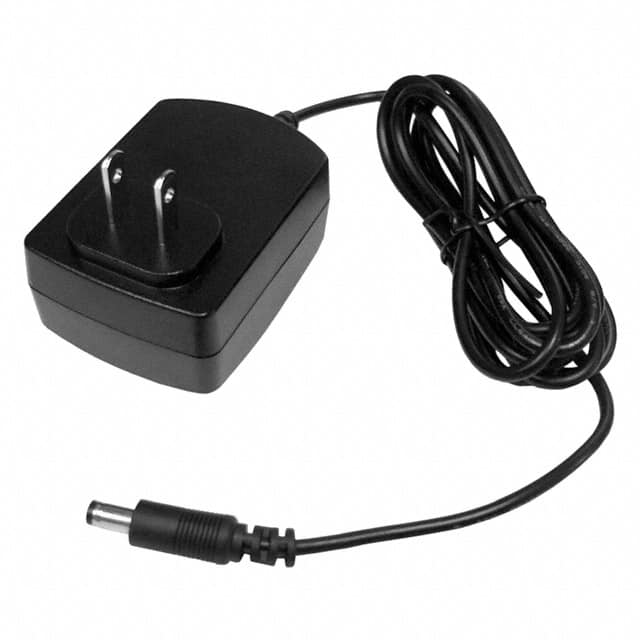

The Phihong USA PSC15A-050 is an AC/DC wall mount adapter designed for various applications. It delivers a stable 5V output at up to 3A, providing a total power of 15W. This adapter series meets the stringent Level VI efficiency requirements, ensuring optimal energy usage.
Featuring a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm), the PSC15A-050 is suitable for ITE (Commercial) applications. Its compact dimensions (71.5mm L x 50.0mm W x 31.2mm H) and wall mount form factor make it convenient for integration into different systems. The adapter includes over-voltage, over-current, and short-circuit protection for enhanced safety and reliability.
With an operating temperature range of 0°C to 40°C and compliance with safety approvals like cULus and CE, this adapter is a dependable power solution for portable equipment, networking devices, and wireless communications.
The output is 5V DC at 3A, providing 15W of power.
The input voltage range is 90 to 264 VAC, with a nominal rating of 100 to 240 VAC at 47 to 63 Hz.
It uses a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, 10.0mm length, with positive center polarity.
The operating temperature range is 0°C to 40°C.
Yes, the output can be shorted permanently without damage.
Dimensions are 71.5mm x 50.0mm x 31.2mm and weight is 120g.
