| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

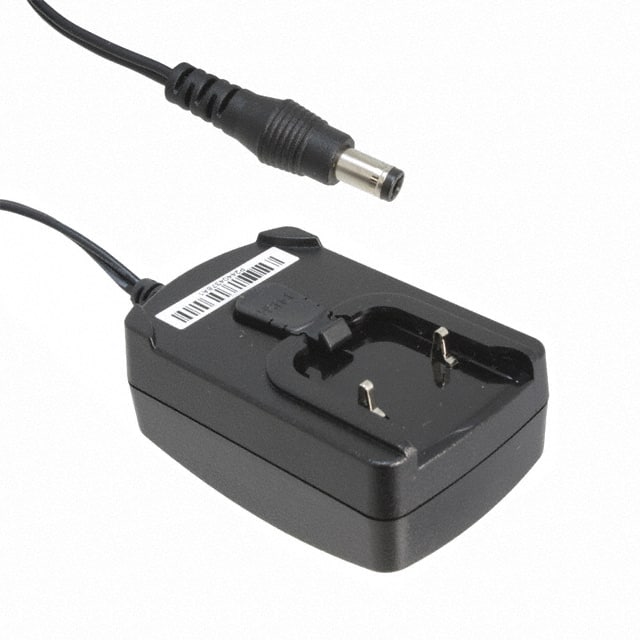

This AC/DC wall mount adapter from Phihong USA, part number PSC12R-120-R-C2, delivers 12 watts of power with a 12V output at 1A.
Designed for ITE (Commercial) applications, this adapter features Level V efficiency, ensuring optimal power usage. Its compact dimensions measure 71.7mm x 45.0mm x 33.0mm, making it suitable for various setups. The adapter utilizes a multi-blade input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization.
The operating temperature range is from 0°C to 40°C, and it consumes a maximum of 300mW at no load. The unit is approved by CE, C-tick, and cULus, and carries a RoHS3 Compliant status. It is designed as a Class II wall mount unit.
The PSC12R-120-R-C2 provides a 12V output at 1A.
This adapter has a power rating of 12W.
The PSC12R-120-R-C2 operates within a temperature range of 0°C to 40°C.
The adapter meets Level V efficiency standards.
It is designed for ITE (Commercial) applications.
The dimensions are 71.7mm in length, 45.0mm in width, and 33.0mm in height.
Yes, the PSC12R-120-R-C2 is RoHS3 Compliant.
